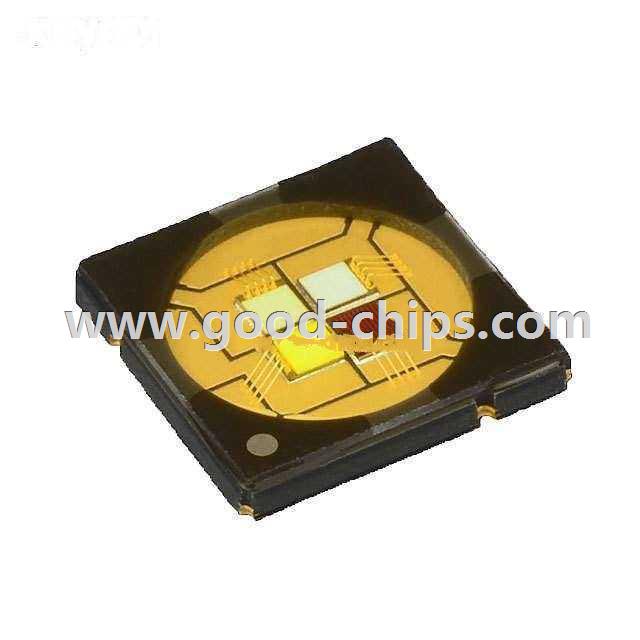

| Manufacturer Part Number: | LZ4-04MDPB-0000 |
|---|---|
| Manufacturer: | LED Engin Inc. |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color LuxiGen™ Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 454nm Blue, 6500K White 8-SMD, No Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LZ4-04MDPB-0000 Datasheet |
| Internal Part Number | 898-LZ4-04MDPB-0000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | LED Engin Inc. | |
| Series | LuxiGen™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red, Green, Blue, White - Cool (RGBW) | |
| Wavelength | 624nm Red, 525nm Green, 454nm Blue, 6500K White | |
| Current - Test | 1A Red, 1A Green, 1A Blue, 1A White | |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White | |
| Lumens/Watt @ Current - Test | 50 lm/W Red, 62 lm/W Green, 93 lm/W White | |
| Current - Max | 2.5A Red, 3A Green, 3A Blue, 3A White | |
| Flux @ Current/Temperature - Test | 115 lm Red, 220 lm Green, 1250mW Blue, 298 lm White | |
| Temperature - Test | 25°C | |
| Viewing Angle | 110° | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD, No Lead Exposed Pad | |
| Thermal Resistance of Package | 0.9°C/W | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LZ4-04MDPB-0000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LZ4-04MDPB-0000 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ4-04MDPB-0000 is new and unused, you can buy LZ4-04MDPB-0000 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ4-04MDPB-0000.
