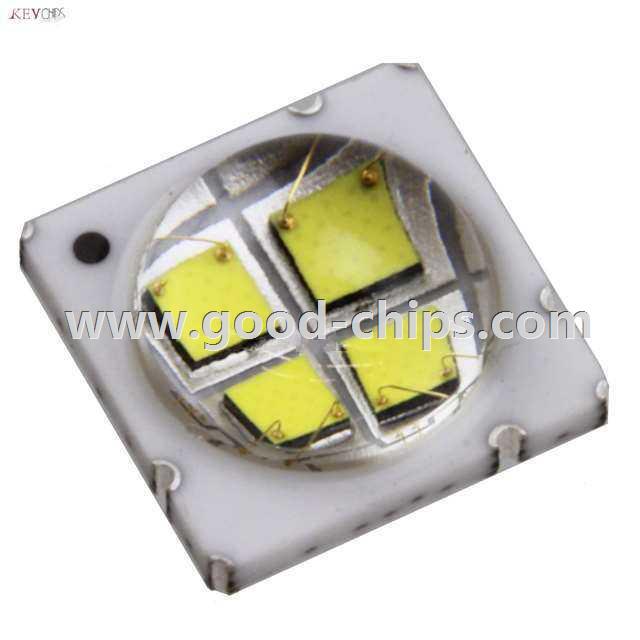

| Manufacturer Part Number: | LZ4-00CW08-0055 |
|---|---|
| Manufacturer: | LED Engin Inc. |
| Product Category: | LED Lighting - White |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting - White, Cool 5500K 12.6V 700mA 90° 8-SMD, No Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LZ4-00CW08-0055 Datasheet |
| Internal Part Number | 898-LZ4-00CW08-0055 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - White | |
| Manufacturer | LED Engin Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Cool | |
| CCT (K) | 5500K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 782 lm (695 lm ~ 868 lm) | |
| Current - Test | 700mA | |
| Voltage - Forward (Vf) (Typ) | 12.6V | |
| Lumens/Watt @ Current - Test | 89 lm/W | |
| CRI (Color Rendering Index) | 75 (Typ) | |
| Current - Max | 1A | |
| Viewing Angle | 90° | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD, No Lead Exposed Pad | |
| Thermal Resistance of Package | 2.8°C/W | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LZ4-00CW08-0055 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LZ4-00CW08-0055 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ4-00CW08-0055 is new and unused, you can buy LZ4-00CW08-0055 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ4-00CW08-0055.
