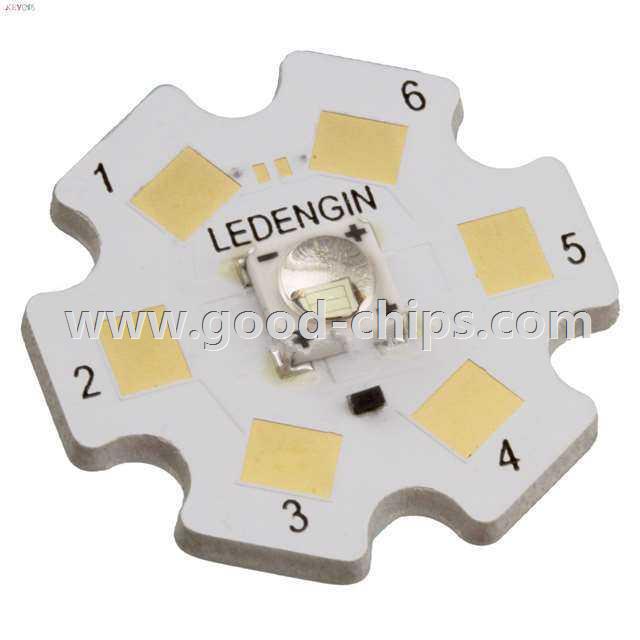

Manufacturer Part Number: | LZ1-10G100-0000 |
---|---|
Manufacturer: | LED Engin Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules LED Module LZ1 Green Starboard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LZ1-10G100-0000 Datasheet |
Internal Part Number | 898-LZ1-10G100-0000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | LED Engin Inc. | |
Series | LZ1 | |
Packaging | - | |
Part Status | Obsolete | |
Type | LED Module | |
Color | Green | |
CCT (K) | - | |
Wavelength | 525nm | |
Configuration | Starboard | |
Flux @ Current/Temperature - Test | 200 lm (145 lm ~ 285 lm) | |
Current - Test | 1A | |
Temperature - Test | 25°C | |
Voltage - Forward (Vf) (Typ) | 3.7V | |
Lumens/Watt @ Current - Test | 53 lm/W | |
Current - Max | 1.2A | |
CRI (Color Rendering Index) | - | |
Viewing Angle | 80° | |
Features | - | |
Size / Dimension | 19.90mm Diameter | |
Height | 4.50mm | |
Light Emitting Surface (LES) | 3.20mm | |
Lens Type | Domed | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LZ1-10G100-0000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LZ1-10G100-0000 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ1-10G100-0000 is new and unused, you can buy LZ1-10G100-0000 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ1-10G100-0000.
