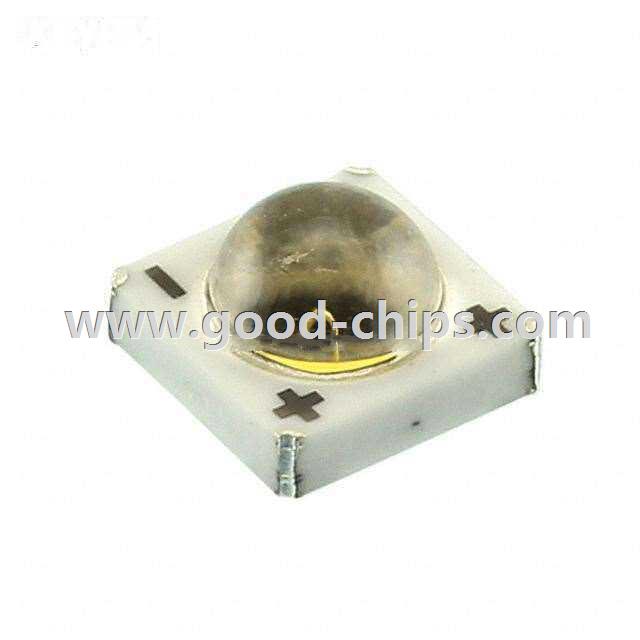

| Manufacturer Part Number: | LZ1-00NW00-0040 |
|---|---|
| Manufacturer: | LED Engin Inc. |
| Product Category: | LED Lighting - White |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting LZ1 White, Neutral 4000K 3.6V 1A 85° 4-SMD, No Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LZ1-00NW00-0040 Datasheet |
| Internal Part Number | 898-LZ1-00NW00-0040 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Neutral White Emmiters 30/Apr/2015 | |
| Category | Optoelectronics | |
| Family | LED Lighting - White | |
| Manufacturer | LED Engin Inc. | |
| Series | LZ1 | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Color | White, Neutral | |
| CCT (K) | 4000K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 216 lm (146 lm ~ 285 lm) | |
| Current - Test | 1A | |
| Voltage - Forward (Vf) (Typ) | 3.6V | |
| Lumens/Watt @ Current - Test | 60 lm/W | |
| CRI (Color Rendering Index) | 82 (Typ) | |
| Current - Max | 1.2A | |
| Viewing Angle | 85° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead Exposed Pad | |
| Thermal Resistance of Package | 10°C/W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LZ1-00NW00-0040 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LZ1-00NW00-0040 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ1-00NW00-0040 is new and unused, you can buy LZ1-00NW00-0040 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ1-00NW00-0040.
