| Manufacturer Part Number: | LYT4315E2 |
|---|---|
| Manufacturer: | Power Integrations |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9290 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output AC DC Offline Switcher Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Triac Dimming 5.44A (Switch) eSIP-7C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LYT4315E2 Datasheet |
| Internal Part Number | 898-LYT4315E2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LYTSwitch LED Driver ICs | |
| PCN Assembly/Origin | Assembly Site Addition 21/Oct/2014 | |
| PCN Other | Multiple Changes 11/Nov/2014 | |
| Online Catalog | AC DC Switcher | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Power Integrations | |
| Series | LYTSwitch™-4 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | AC DC Offline Switcher | |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 85VAC | |
| Voltage - Supply (Max) | 132VAC | |
| Voltage - Output | - | |
| Current - Output / Channel | 5.44A (Switch) | |
| Frequency | 132kHz | |
| Dimming | Triac | |
| Applications | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | |

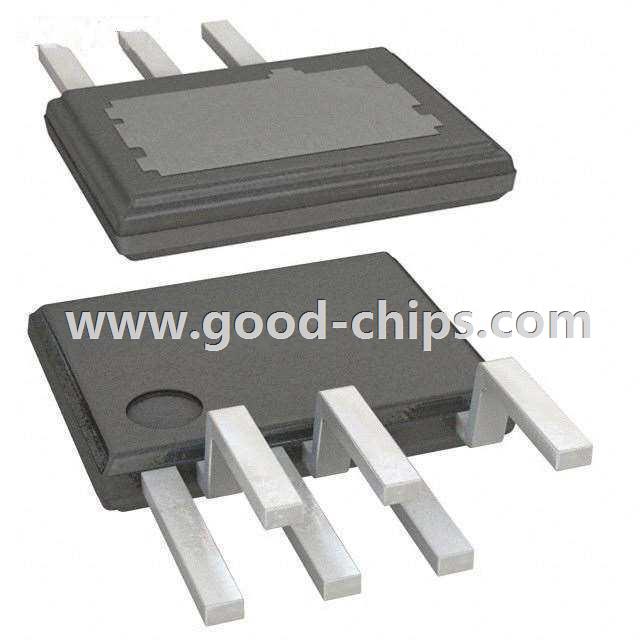

| Supplier Device Package | eSIP-7C | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LYT4315E2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LYT4315E2 is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of LYT4315E2 is new and unused, you can buy LYT4315E2 Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LYT4315E2.
