| Manufacturer Part Number: | LYT3324D |
|---|---|
| Manufacturer: | Power Integrations |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output AC DC Offline Switcher Flyback, Step-Down (Buck), Step-Up (Boost) Triac Dimming 16-SO B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LYT3324D Datasheet |
| Internal Part Number | 898-LYT3324D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Power Integrations | |
| Series | LYTSwitch™-3 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | AC DC Offline Switcher | |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 85VAC | |
| Voltage - Supply (Max) | 132VAC | |
| Voltage - Output | - | |
| Current - Output / Channel | - | |
| Frequency | 40kHz ~ 124kHz | |
| Dimming | Triac | |
| Applications | Lighting | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

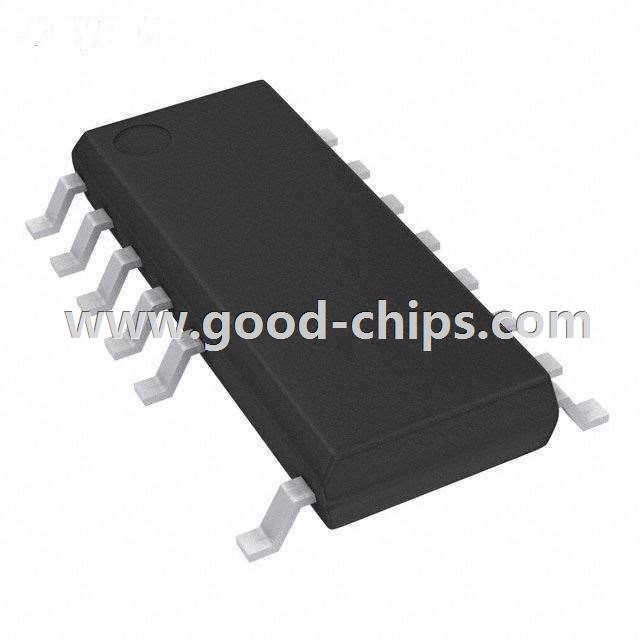

| Package / Case | 16-SOIC (0.154", 3.90mm Width) 14 Leads | |
| Supplier Device Package | 16-SO B | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LYT3324D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LYT3324D is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of LYT3324D is new and unused, you can buy LYT3324D Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LYT3324D.
