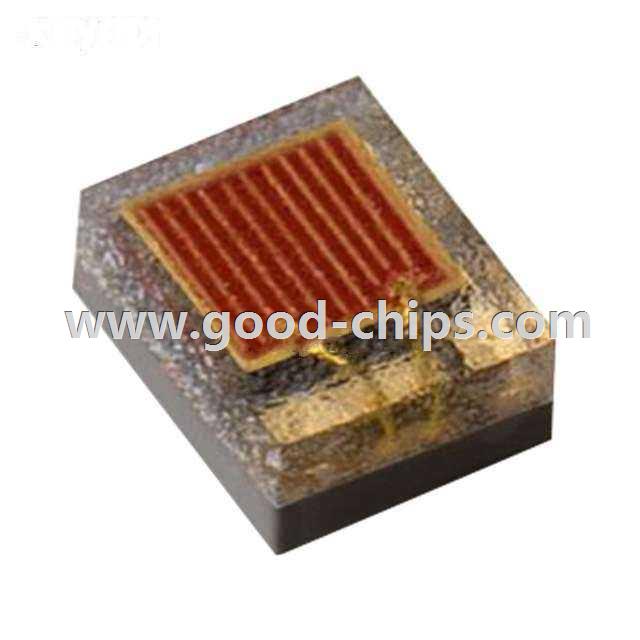

| Manufacturer Part Number: | LXZ1-PH01 |
|---|---|
| Manufacturer: | Lumileds |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color LUXEON Z Red-Orange 615nm (610nm ~ 620nm) 2-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LXZ1-PH01 Datasheet |
| Internal Part Number | 898-LXZ1-PH01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LUXEON Colors Overview Luxeon Z Illumination Portfolio | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Lumileds | |
| Series | LUXEON Z | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red-Orange | |
| Wavelength | 615nm (610nm ~ 620nm) | |
| Current - Test | 500mA | |
| Voltage - Forward (Vf) (Typ) | 2.2V | |
| Lumens/Watt @ Current - Test | 58 lm/W | |
| Current - Max | 700mA | |
| Flux @ Current/Temperature - Test | 64 lm (56 lm ~ 72 lm) | |
| Temperature - Test | 25°C | |
| Viewing Angle | 145° | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead | |
| Thermal Resistance of Package | 8°C/W | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LXZ1-PH01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LXZ1-PH01 is in stock for immediate shipping now. We are the distributor of Lumileds all series components. The condition of LXZ1-PH01 is new and unused, you can buy LXZ1-PH01 Lumileds with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXZ1-PH01.
