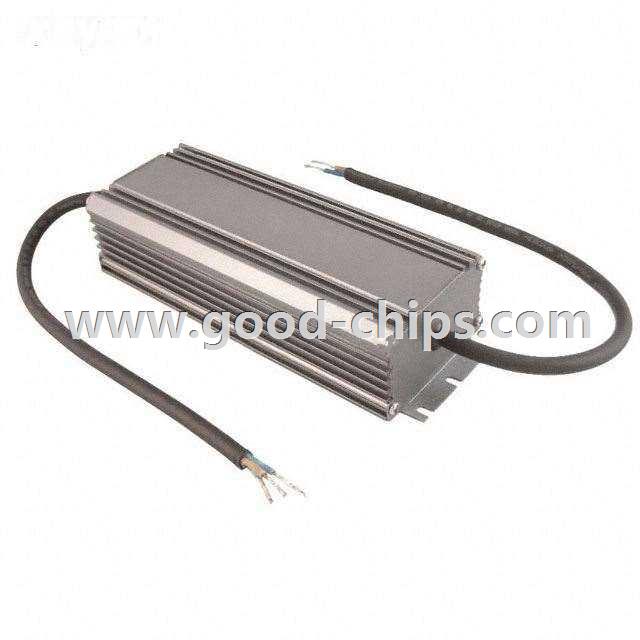

Manufacturer Part Number: | LXV250-084SW |
---|---|
Manufacturer: | Excelsys Technologies Ltd |
Product Category: | LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.97A 84V Constant Voltage LED Driver AC DC Converter Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LXV250-084SW Datasheet |
Internal Part Number | 898-LXV250-084SW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | LED RoHS Delcaration | |
Design Resources | Lighting Product Selector | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | LED Drivers | |
Manufacturer | Excelsys Technologies Ltd | |
Series | LXV250 | |
Part Status | Active | |
Type | Constant Voltage | |
Topology | AC DC Converter | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 90VAC | |
Voltage - Input (Max) | 305VAC | |
Voltage - Output | 84V | |
Current - Output (Max) | 2.97A | |
Power (Watts) | 250W | |
Voltage - Isolation | 3.75kV (3750V) | |
Dimming | - | |
Features | OCP, OTP, OVP, SCP | |
Ratings | IP67 | |
Operating Temperature | -35°C ~ 70°C | |
Efficiency | 94% | |
Termination Style | Wire Leads | |
Size / Dimension | 9.88" L x 3.46" W x 1.30" H (251.0mm x 88.0mm x 33.0mm) | |
Mounting Type | Chassis Mount | |
Approvals | CE, cULus, EN | |
Weight | 0.001 KG | |
Standard Package | 1 | |
Application | Email for details | |
Replacement Part | LXV250-084SW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LXV250-084SW is in stock for immediate shipping now. We are the distributor of Excelsys Technologies Ltd all series components. The condition of LXV250-084SW is new and unused, you can buy LXV250-084SW Excelsys Technologies Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXV250-084SW.
