Manufacturer Part Number: | LXR7-SW50 |
---|---|
Manufacturer: | Lumileds |
Product Category: | LED Lighting - White |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

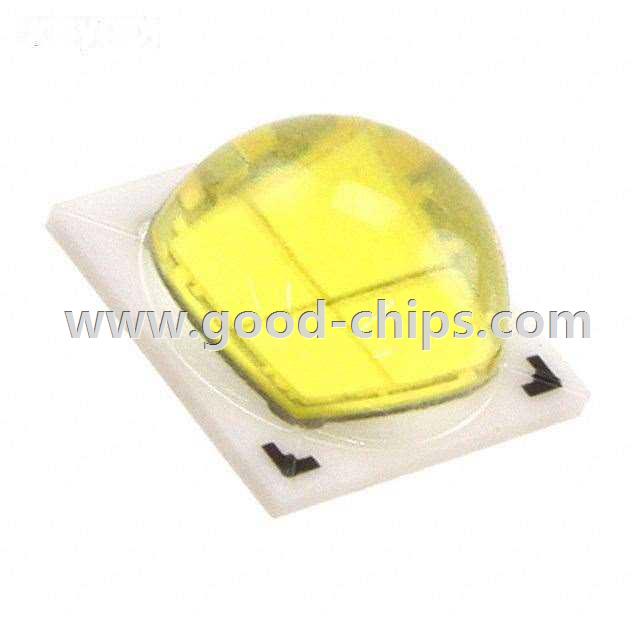

Description: | LED Lighting LUXEON M White, Cool 5000K 11.2V 700mA 120° 2-SMD, No Lead, Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LXR7-SW50 Datasheet |
Internal Part Number | 898-LXR7-SW50 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LUXEON M and MZ Emitters | |
Design Resources | Lighting Product Selector | |
Featured Product | LUXEON M LED | |
Online Catalog | LUXEON M and LUXEON MZ Series | |
Category | Optoelectronics | |
Family | LED Lighting - White | |
Manufacturer | Lumileds | |
Series | LUXEON M | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | White, Cool | |
CCT (K) | 5000K | |
Flux @ 85°C, Current - Test | 1050 lm (Typ) | |
Flux @ 25°C, Current - Test | - | |
Current - Test | 700mA | |
Voltage - Forward (Vf) (Typ) | 11.2V | |
Lumens/Watt @ Current - Test | 134 lm/W | |
CRI (Color Rendering Index) | 70 | |
Current - Max | 1.2A | |
Viewing Angle | 120° | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD, No Lead, Exposed Pad | |
Thermal Resistance of Package | 1.25°C/W | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LXR7-SW50 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LXR7-SW50 is in stock for immediate shipping now. We are the distributor of Lumileds all series components. The condition of LXR7-SW50 is new and unused, you can buy LXR7-SW50 Lumileds with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXR7-SW50.
