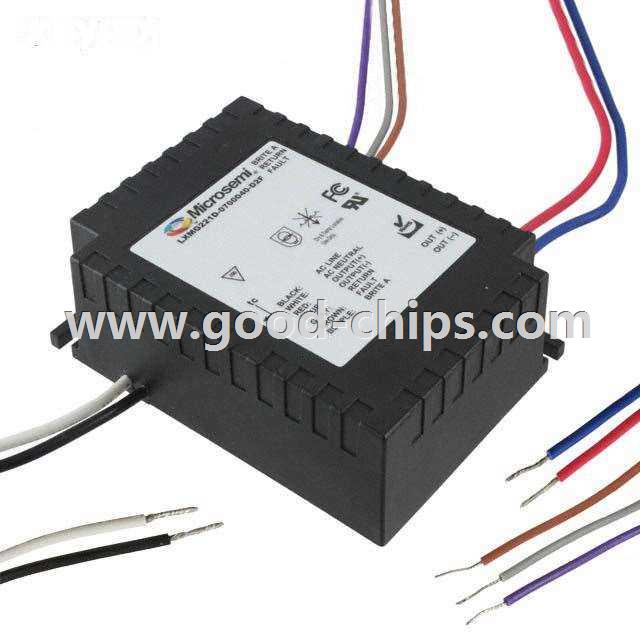

| Manufacturer Part Number: | LXMG221D-0700040-D2F |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 40 ~ 57 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LXMG221D-0700040-D2F Datasheet |
| Internal Part Number | 898-LXMG221D-0700040-D2F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 12/Mar/2014 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Obsolete | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 347VAC | |
| Voltage - Input (Max) | 480VAC | |
| Voltage - Output | 40 ~ 57 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 40W | |
| Voltage - Isolation | - | |
| Dimming | Analog | |
| Features | OTP, OVP, SCP | |
| Ratings | IP66 | |
| Operating Temperature | -30°C ~ 70°C | |
| Efficiency | 91% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 3.74" L x 2.76" W x 1.26" H (95.0mm x 70.0mm x 32.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | EN, UL | |
| Weight | 0.001 KG | |
| Standard Package | 30 | |
| Application | Email for details | |
| Replacement Part | LXMG221D-0700040-D2F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LXMG221D-0700040-D2F is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LXMG221D-0700040-D2F is new and unused, you can buy LXMG221D-0700040-D2F Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXMG221D-0700040-D2F.
