LXES1TBAA2-013

LXES1TBAA2-013
Manufacturer Part Number:LXES1TBAA2-013
Manufacturer:
Product Category:TVS - Diodes
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:TVS DIODE 5.5VWM SMD
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):3 (168 Hours)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: LXES1TBAA2-013 Datasheet
LXES1TBAA2-013´s Parameters
Internal Part Number898-LXES1TBAA2-013
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductLXES Series ESD Protection Devices
CategoryCircuit Protection
FamilyTVS - Diodes
ManufacturerMurata Electronics North America
Series-
PackagingTape & Reel (TR)
Part StatusObsolete
TypeSteering (Rail to Rail)
Unidirectional Channels-
Bidirectional Channels2
Voltage - Reverse Standoff (Typ)5.5V (Max)
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp-
Current - Peak Pulse (10/1000µs)-
Power - Peak Pulse-
Power Line ProtectionYes
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

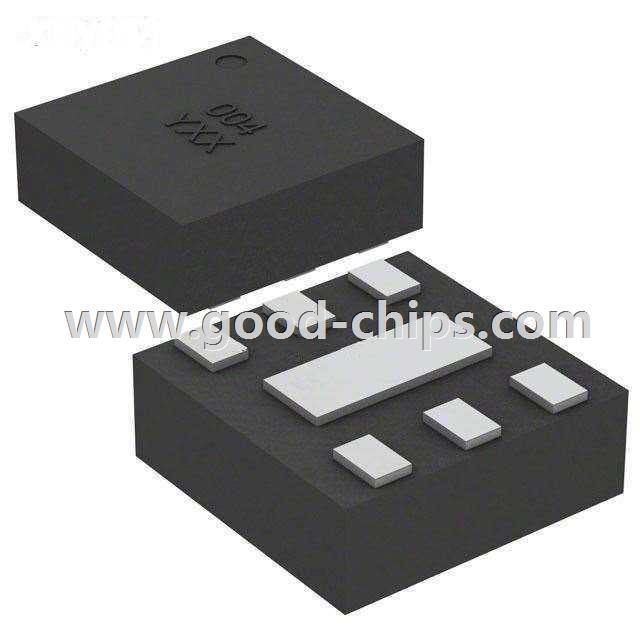

Package / Case6-UFDFN Exposed Pad
Supplier Device Package-
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartLXES1TBAA2-013
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

LXES1TBAA2-013 is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LXES1TBAA2-013 is new and unused, you can buy LXES1TBAA2-013 Murata Electronics North America with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for LXES1TBAA2-013.
