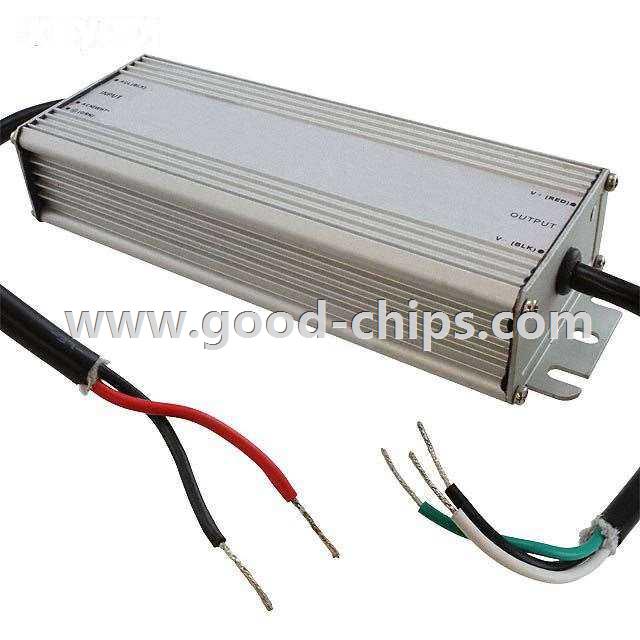

Manufacturer Part Number: | LXC96-0450SW |
---|---|
Manufacturer: | Excelsys Technologies Ltd |
Product Category: | LED Drivers |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |
Description: | 450mA 106 ~ 213 V Constant Current LED Driver AC DC Converter Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LXC96-0450SW Datasheet |
Internal Part Number | 898-LXC96-0450SW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | LED RoHS Delcaration | |
Design Resources | Lighting Product Selector | |
Online Catalog | LXC96 Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | LED Drivers | |
Manufacturer | Excelsys Technologies Ltd | |
Series | LXC96 | |
Part Status | Active | |
Type | Constant Current | |
Topology | AC DC Converter | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 90VAC | |
Voltage - Input (Max) | 305VAC | |
Voltage - Output | 106 ~ 213 V | |
Current - Output (Max) | 450mA | |
Power (Watts) | 96W | |
Voltage - Isolation | 3.75kV (3750V) | |
Dimming | - | |
Features | OTP, OVP, SCP | |
Ratings | IP67 | |
Operating Temperature | -35°C ~ 70°C | |
Efficiency | 92% | |
Termination Style | Wire Leads | |
Size / Dimension | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | |
Mounting Type | Chassis Mount | |
Approvals | CE, cULus, EN | |
Weight | 0.001 KG | |
Standard Package | 1 | |
Application | Email for details | |
Replacement Part | LXC96-0450SW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LXC96-0450SW is in stock for immediate shipping now. We are the distributor of Excelsys Technologies Ltd all series components. The condition of LXC96-0450SW is new and unused, you can buy LXC96-0450SW Excelsys Technologies Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXC96-0450SW.
