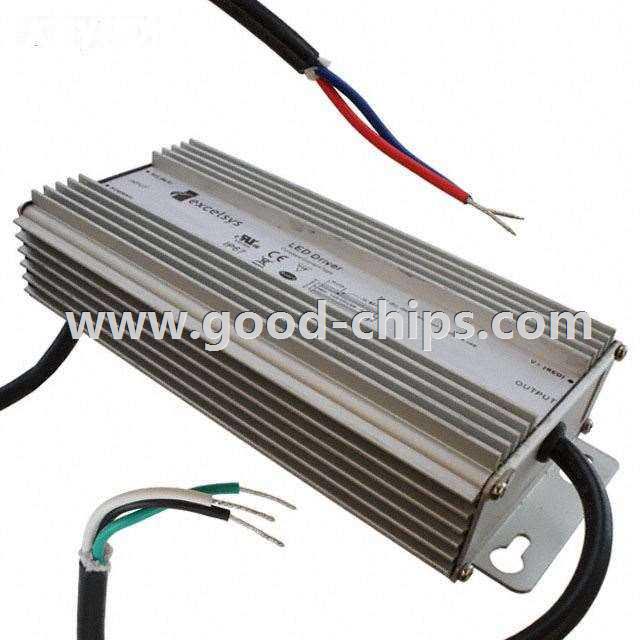

| Manufacturer Part Number: | LXC150-1400SH |
|---|---|
| Manufacturer: | Excelsys Technologies Ltd |
| Product Category: | LED Drivers |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.4A 53 ~ 107 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LXC150-1400SH Datasheet |
| Internal Part Number | 898-LXC150-1400SH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | LED RoHS Delcaration | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | LXC150H Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Excelsys Technologies Ltd | |
| Series | LXC150H | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 249VAC | |
| Voltage - Input (Max) | 528VAC | |
| Voltage - Output | 53 ~ 107 V | |
| Current - Output (Max) | 1.4A | |
| Power (Watts) | 150W | |
| Voltage - Isolation | 3.75kV (3750V) | |
| Dimming | - | |
| Features | OTP, OVP, SCP | |
| Ratings | IP67 | |
| Operating Temperature | -35°C ~ 65°C | |
| Efficiency | 90% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 8.74" L x 3.70" W x 1.71" H (222.0mm x 93.9mm x 43.5mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, CSA, cULus, EN | |
| Weight | 0.001 KG | |
| Standard Package | 5 | |
| Application | Email for details | |
| Replacement Part | LXC150-1400SH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LXC150-1400SH is in stock for immediate shipping now. We are the distributor of Excelsys Technologies Ltd all series components. The condition of LXC150-1400SH is new and unused, you can buy LXC150-1400SH Excelsys Technologies Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXC150-1400SH.
