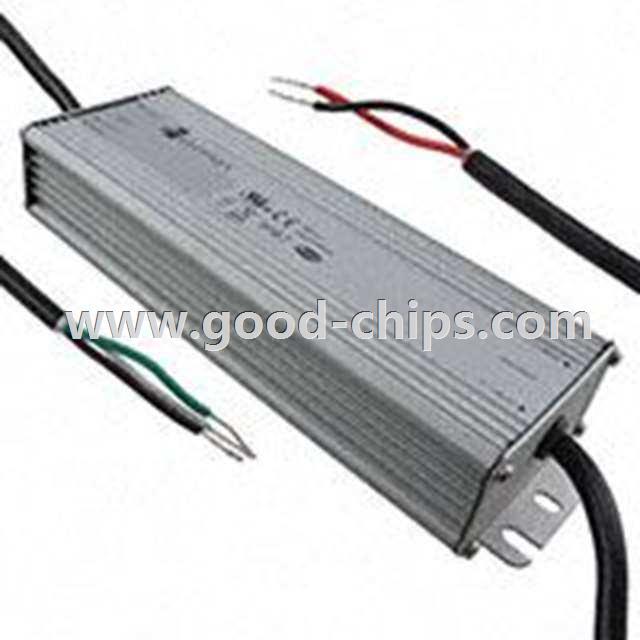

| Manufacturer Part Number: | LXC100-0700SW |
|---|---|
| Manufacturer: | Excelsys Technologies Ltd |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 86 ~ 143 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LXC100-0700SW Datasheet |
| Internal Part Number | 898-LXC100-0700SW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | LED RoHS Delcaration | |
| Design Resources | Lighting Product Selector | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Excelsys Technologies Ltd | |
| Series | LXC100 | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 90VAC | |
| Voltage - Input (Max) | 305VAC | |
| Voltage - Output | 86 ~ 143 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 100W | |
| Voltage - Isolation | 3kV (3000V) | |
| Dimming | - | |
| Features | OVP, SCP | |
| Ratings | IP67 | |
| Operating Temperature | -35°C ~ 70°C | |
| Efficiency | 91% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, cULus, EN | |
| Weight | 0.001 KG | |
| Standard Package | 1 | |
| Application | Email for details | |
| Replacement Part | LXC100-0700SW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LXC100-0700SW is in stock for immediate shipping now. We are the distributor of Excelsys Technologies Ltd all series components. The condition of LXC100-0700SW is new and unused, you can buy LXC100-0700SW Excelsys Technologies Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXC100-0700SW.
