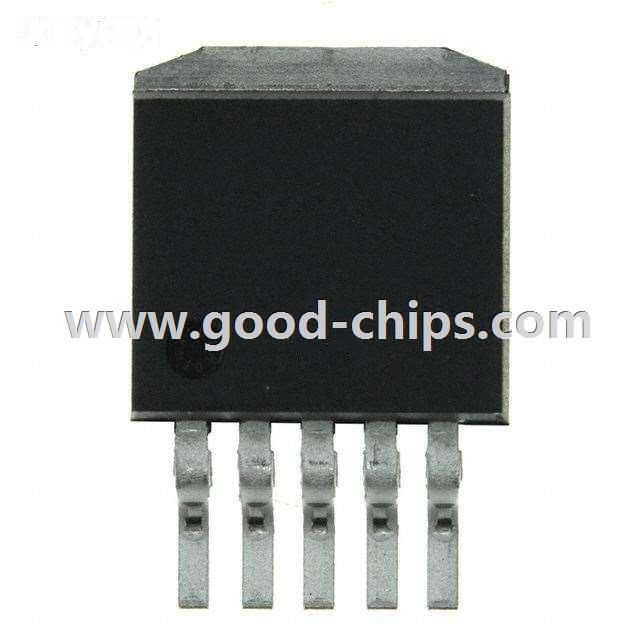

| Manufacturer Part Number: | LX8580A-00CDD |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 2 V ~ 2.85 V 7.5A TO-263-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX8580A-00CDD Datasheet |
| Internal Part Number | 898-LX8580A-00CDD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 2 V ~ 2.85 V | |
| Current - Output | 7.5A | |
| Voltage - Dropout (Typical) | 0.59V @ 7.5A | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 7V | |
| Current - Limit (Min) | 7.7A | |
| Operating Temperature | 0°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | |
| Supplier Device Package | TO-263-5 | |
| Standard Package | 750 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX8580A-00CDD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX8580A-00CDD is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX8580A-00CDD is new and unused, you can buy LX8580A-00CDD Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX8580A-00CDD.
