| Manufacturer Part Number: | LX7176ACLQ-TR |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 12-VFLGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX7176ACLQ-TR Datasheet |
| Internal Part Number | 898-LX7176ACLQ-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 4A | |
| Frequency - Switching | 1.65MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | 0°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

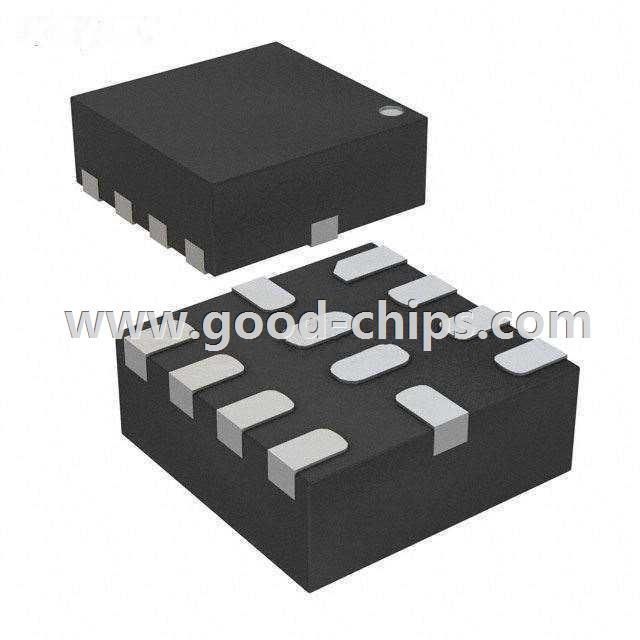

| Package / Case | 12-VFLGA | |
| Supplier Device Package | 12-QFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX7176ACLQ-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX7176ACLQ-TR is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX7176ACLQ-TR is new and unused, you can buy LX7176ACLQ-TR Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX7176ACLQ-TR.
