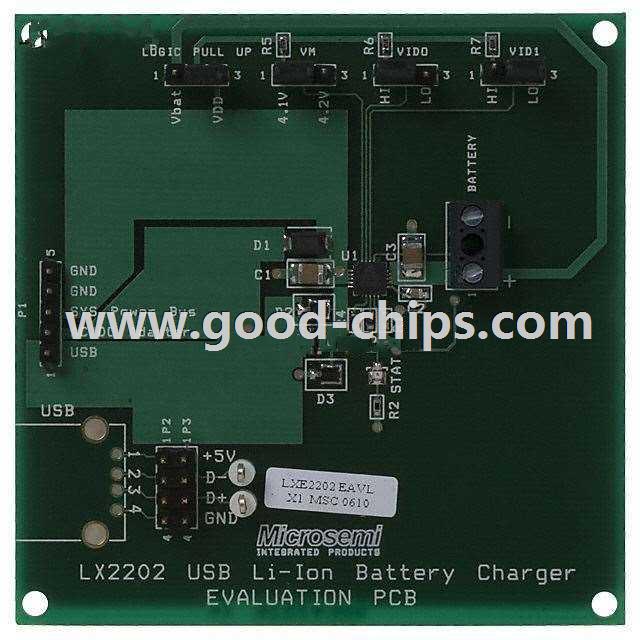

| Manufacturer Part Number: | LX2202 EVAL |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LX2202 - Power Management, Battery Charger Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX2202 EVAL Datasheet |
| Internal Part Number | 898-LX2202 EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Battery Charger | |
| Embedded | No | |
| Utilized IC / Part | LX2202 | |
| Primary Attributes | 1 Cell- Li-Ion / Li-Pol, 4.1V or 4.2V @ 2A, 5V (USB Input) | |
| Secondary Attributes | True Charge Indicator, Low RdsON in Discharge Mode, Full Capacity Charging | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX2202 EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX2202 EVAL is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX2202 EVAL is new and unused, you can buy LX2202 EVAL Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX2202 EVAL.
