| Manufacturer Part Number: | LX1991ILQ |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 6 Output Linear Analog, PWM Dimming 30mA 16-MLPQ (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX1991ILQ Datasheet |
| Internal Part Number | 898-LX1991ILQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Mar/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 6 | |
| Voltage - Supply (Min) | 4.5V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 3V | |
| Current - Output / Channel | 30mA | |
| Frequency | - | |
| Dimming | Analog, PWM | |
| Applications | - | |
| Operating Temperature | -40°C ~ 85°C (TJ) | |
| Mounting Type | Surface Mount | |

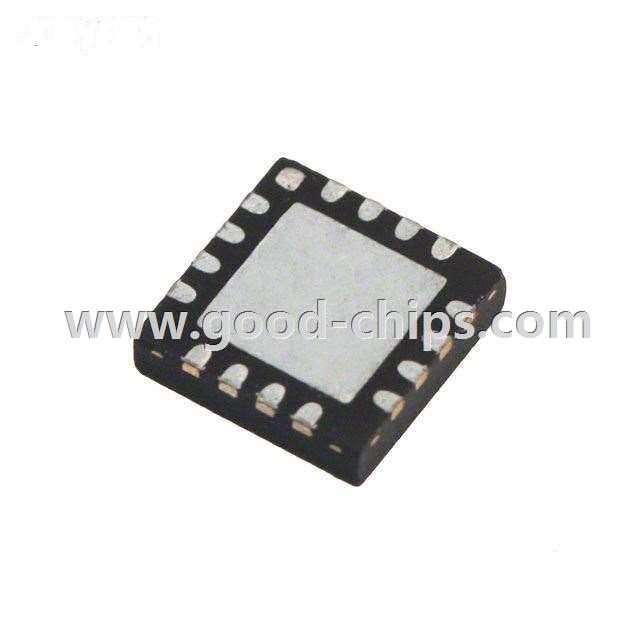

| Package / Case | 16-VQFN Exposed Pad | |
| Supplier Device Package | 16-MLPQ (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX1991ILQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX1991ILQ is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX1991ILQ is new and unused, you can buy LX1991ILQ Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX1991ILQ.
