| Manufacturer Part Number: | LX1671CLQ |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 11003 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 38-MLPQ (5x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX1671CLQ Datasheet |
| Internal Part Number | 898-LX1671CLQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Microsemi Corporation | |
| Series | LoadSHARE™ | |
| Packaging | - | |
| Part Status | Obsolete | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 4 | |
| Output Phases | 2 | |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | |
| Frequency - Switching | 300kHz | |
| Duty Cycle (Max) | 85% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Enable, Soft Start | |
| Operating Temperature | 0°C ~ 70°C (TA) | |

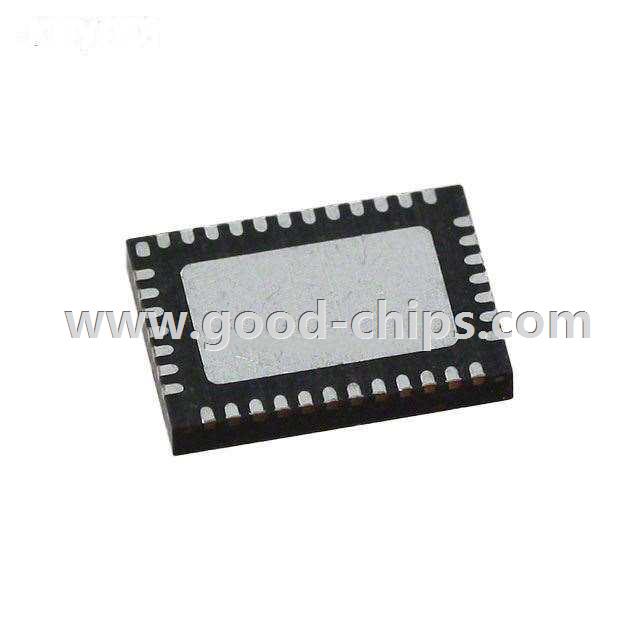

| Package / Case | 38-VFQFN Exposed Pad | |
| Supplier Device Package | 38-MLPQ (5x7) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX1671CLQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX1671CLQ is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX1671CLQ is new and unused, you can buy LX1671CLQ Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX1671CLQ.
