Manufacturer Part Number: | LX-DB800D-EVAL-KIT |
---|---|
Manufacturer: | Logic |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

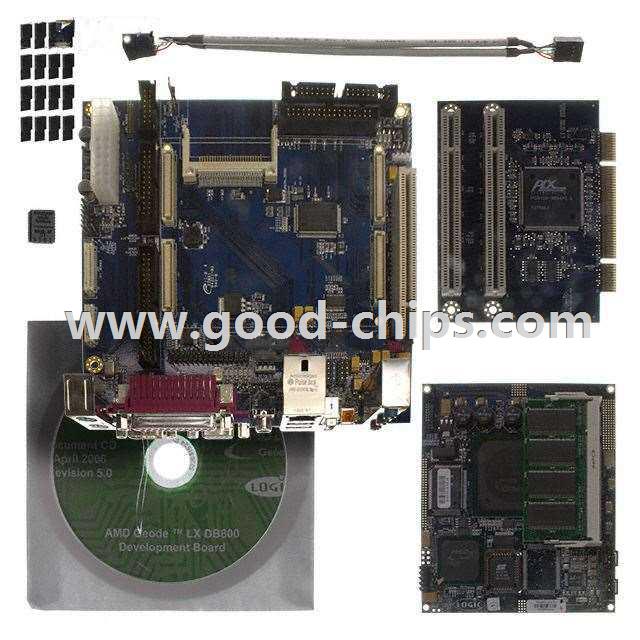

Description: | LX 800 Zoom™ Geode™ MPU Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LX-DB800D-EVAL-KIT Datasheet |
Internal Part Number | 898-LX-DB800D-EVAL-KIT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Logic | |
Series | Geode™ | |
Part Status | Obsolete | |
Board Type | Evaluation Platform | |
Type | MPU | |
Core Processor | - | |
Operating System | - | |
Platform | Zoom™ | |
For Use With/Related Products | LX 800 | |
Mounting Type | Fixed | |
Contents | Board(s), Cable(s), Accessories | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LX-DB800D-EVAL-KIT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LX-DB800D-EVAL-KIT is in stock for immediate shipping now. We are the distributor of Logic all series components. The condition of LX-DB800D-EVAL-KIT is new and unused, you can buy LX-DB800D-EVAL-KIT Logic with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX-DB800D-EVAL-KIT.
