| Manufacturer Part Number: | LVD75C100H |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |

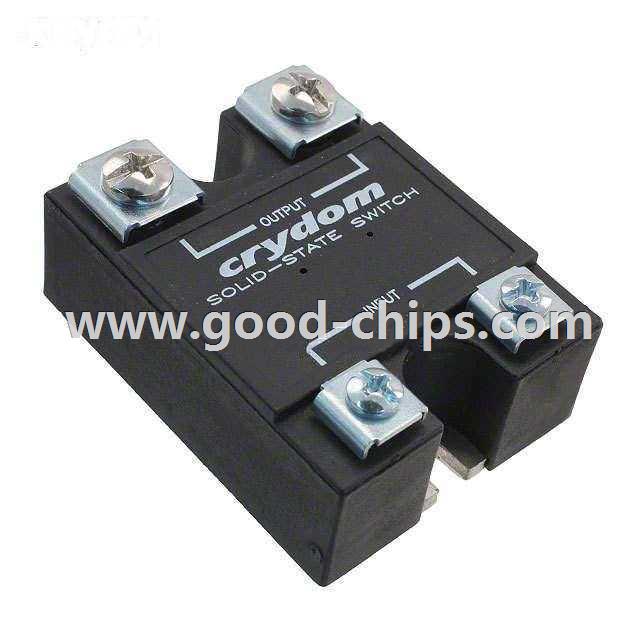

| Description: | Solid State Relay SPST-NO (1 Form A) Hockey Puck |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LVD75C100H Datasheet |
| Internal Part Number | 898-LVD75C100H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | LVD Series.sat LVD Series.dwg LVD Series.stp | |
| Online Catalog | LVD Series | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | LVD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | DC | |
| On-State Resistance (Max) | 5 mOhm | |
| Load Current | 100A | |
| Voltage - Input | 12 ~ 12.5VDC | |
| Voltage - Load | 3 ~ 75 V | |
| Mounting Type | Chassis Mount or Panel Mount | |
| Termination Style | Screw Terminal | |
| Package / Case | Hockey Puck | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LVD75C100H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LVD75C100H is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of LVD75C100H is new and unused, you can buy LVD75C100H Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LVD75C100H.
