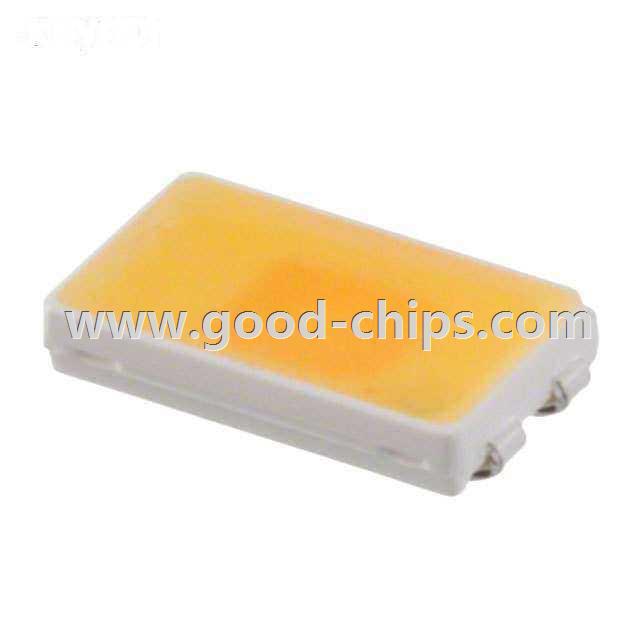

| Manufacturer Part Number: | LTW-5630AZL27 |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | LED Lighting - White |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting AZL White, Warm 2700K 3.13V 120mA 120° 4-SMD, Flat Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTW-5630AZL27 Datasheet |
| Internal Part Number | 898-LTW-5630AZL27 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Design/Specification | LTW-x Series Flux Change 01/May/2015 | |
| Online Catalog | AZLxx Series | |
| Category | Optoelectronics | |
| Family | LED Lighting - White | |
| Manufacturer | Lite-On Inc. | |
| Series | AZL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Warm | |
| CCT (K) | 2700K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 50 lm (41 lm ~ 59 lm) | |
| Current - Test | 120mA | |
| Voltage - Forward (Vf) (Typ) | 3.13V | |
| Lumens/Watt @ Current - Test | 133 lm/W | |
| CRI (Color Rendering Index) | 80 | |
| Current - Max | 200mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Flat Lead Exposed Pad | |
| Thermal Resistance of Package | 15°C/W | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTW-5630AZL27 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTW-5630AZL27 is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTW-5630AZL27 is new and unused, you can buy LTW-5630AZL27 Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTW-5630AZL27.
