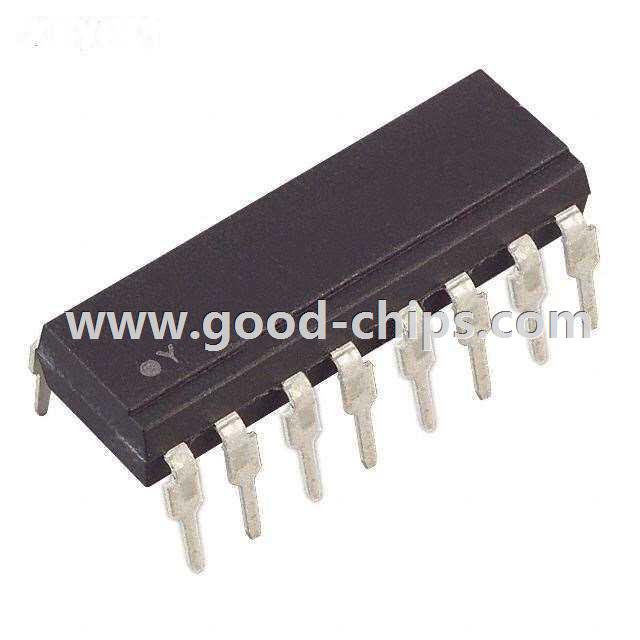

LTV-844M

LTV-844M
Manufacturer Part Number:LTV-844M
Manufacturer:
Product Category:Optoisolators - Transistor, Photovoltaic Output
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Optoisolator Transistor Output 5000Vrms 4 Channel 16-DIP
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: LTV-844M Datasheet
LTV-844M´s Parameters
Internal Part Number898-LTV-844M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryIsolators
FamilyOptoisolators - Transistor, Photovoltaic Output
ManufacturerLite-On Inc.
Series-
PackagingTube
Part StatusActive
Number of Channels4
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)20% @ 1mA
Current Transfer Ratio (Max)300% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)35V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement PartLTV-844M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

LTV-844M is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTV-844M is new and unused, you can buy LTV-844M Lite-On Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for LTV-844M.
