| Manufacturer Part Number: | LTV-814HS-TA1 |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 30010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTV-814HS-TA1 Datasheet |
| Internal Part Number | 898-LTV-814HS-TA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LTV-814, 824, 844 Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 20% @ 100mA | |
| Current Transfer Ratio (Max) | 80% @ 100mA | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 4µs, 3µs | |
| Input Type | AC, DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 35V | |
| Current - Output / Channel | 80mA | |
| Voltage - Forward (Vf) (Typ) | 1.4V | |
| Current - DC Forward (If) (Max) | 150mA | |
| Vce Saturation (Max) | 200mV | |
| Operating Temperature | -30°C ~ 100°C | |
| Mounting Type | Surface Mount | |

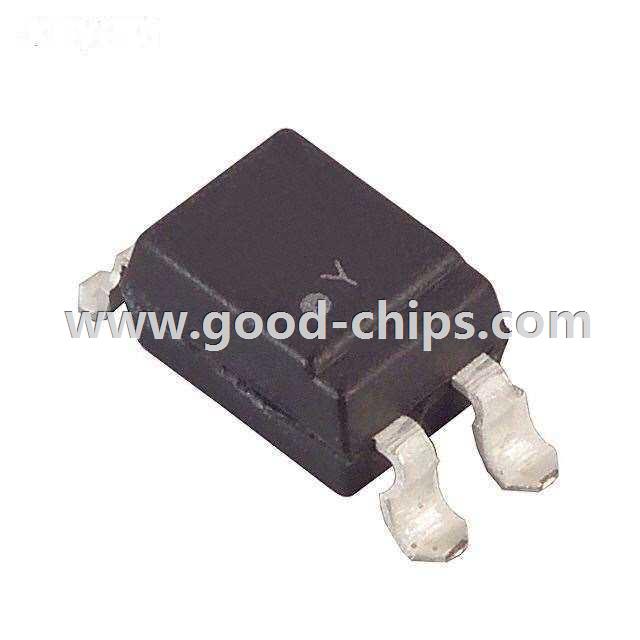

| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-SMD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTV-814HS-TA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTV-814HS-TA1 is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTV-814HS-TA1 is new and unused, you can buy LTV-814HS-TA1 Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTV-814HS-TA1.
