Manufacturer Part Number: | LTV-356T |
---|---|
Manufacturer: | Lite-On Inc. |
Product Category: | Optoisolators - Transistor, Photovoltaic Output |
Available Quantity: | 129010 Pieces |
Unit Price: | Quote by Email |
Description: | Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTV-356T Datasheet |
Internal Part Number | 898-LTV-356T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | LTV-356T Series | |
Category | Isolators | |
Family | Optoisolators - Transistor, Photovoltaic Output | |
Manufacturer | Lite-On Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Channels | 1 | |
Voltage - Isolation | 3750Vrms | |
Current Transfer Ratio (Min) | 50% @ 5mA | |
Current Transfer Ratio (Max) | 600% @ 5mA | |
Turn On / Turn Off Time (Typ) | - | |
Rise / Fall Time (Typ) | 4µs, 3µs | |
Input Type | DC | |
Output Type | Transistor | |
Voltage - Output (Max) | 80V | |
Current - Output / Channel | 50mA | |
Voltage - Forward (Vf) (Typ) | 1.2V | |
Current - DC Forward (If) (Max) | 50mA | |
Vce Saturation (Max) | 200mV | |
Operating Temperature | -55°C ~ 110°C | |
Mounting Type | Surface Mount | |

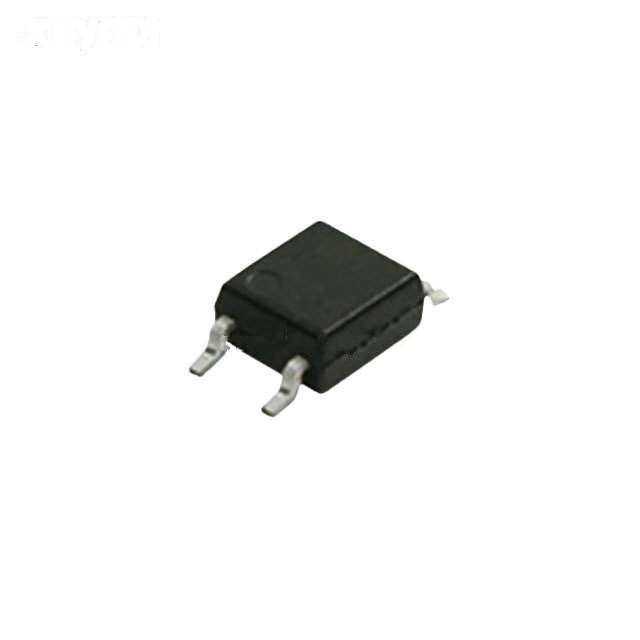

Package / Case | 4-SMD, Gull Wing | |
Supplier Device Package | 4-SOP (2.54mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTV-356T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTV-356T is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTV-356T is new and unused, you can buy LTV-356T Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTV-356T.
