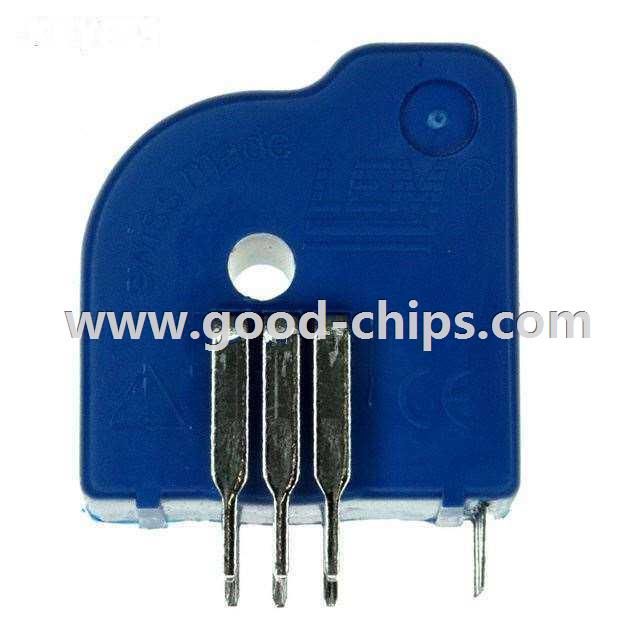

Manufacturer Part Number: | LTSR 15-NP |
---|---|
Manufacturer: | LEM USA Inc. |
Product Category: | Current Transducers |
Available Quantity: | 9435 Pieces |
Unit Price: | Quote by Email |
Description: | Current Sensor 15A 1 Channel Hall Effect, Closed Loop Bidirectional Ring Opening 0.126" Dia, 6 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTSR 15-NP Datasheet |
Internal Part Number | 898-LTSR 15-NP | |
Manufacturer Lead time | 6-8 weeks | |
지위 | New & Unused, Original Sealed | |
Online Catalog | LTSR | |
Category | Sensors, Transducers | |
Family | Current Transducers | |
Manufacturer | LEM USA Inc. | |
Series | LTSR | |
Packaging | Tray | |
Part Status | Active | |
For Measuring | AC/DC | |
Sensor Type | Hall Effect, Closed Loop | |
Current - Sensing | 15A | |
Number of Channels | 1 | |
Output | Ratiometric, Voltage | |
Sensitivity | 41.6mV/A | |
Frequency | DC ~ 200kHz | |
Linearity | ±0.1% | |
Accuracy | ±0.2% | |
Voltage - Supply | 5V | |
Response Time | 0.4µs | |
Current - Supply (Max) | - | |
Operating Temperature | -40°C ~ 85°C | |
Polarization | Bidirectional | |
Mounting Type | Through Hole | |
Package / Case | Ring Opening 0.126" Dia, 6 Leads | |
Standard Package | 50 | |
무게 | 0.001 KG | |
신청 | Email for details | |
Replacement Part | LTSR 15-NP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTSR 15-NP is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of LTSR 15-NP is new and unused, you can buy LTSR 15-NP LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTSR 15-NP.
