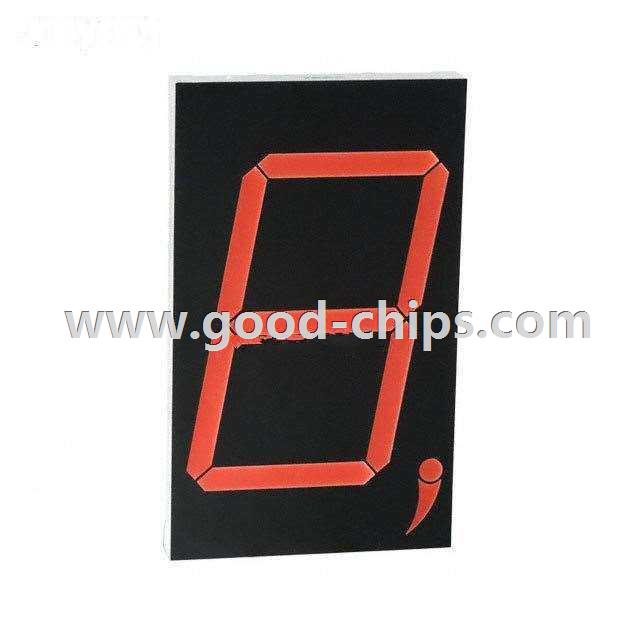

| Manufacturer Part Number: | LTS-50301HRB |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9048 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment 1 Character Common Cathode 20V 30mA 7.087" H x 4.252" W x 0.630" D (180.00mm x 108.00mm x 16.00mm) 10-DIP (5.197", 132.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTS-50301HRB Datasheet |
| Internal Part Number | 898-LTS-50301HRB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7-Segment Single Digit Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 7.087" H x 4.252" W x 0.630" D (180.00mm x 108.00mm x 16.00mm) | |
| Digit/Alpha Size | 5.00" (127.00mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 20V | |
| Current - Test | 30mA | |
| Millicandela Rating | 60mcd | |
| Wavelength - Peak | 635nm | |
| Power Dissipation (Max) | 1.2W | |
| Package / Case | 10-DIP (5.197", 132.00mm) | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTS-50301HRB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTS-50301HRB is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTS-50301HRB is new and unused, you can buy LTS-50301HRB Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTS-50301HRB.
