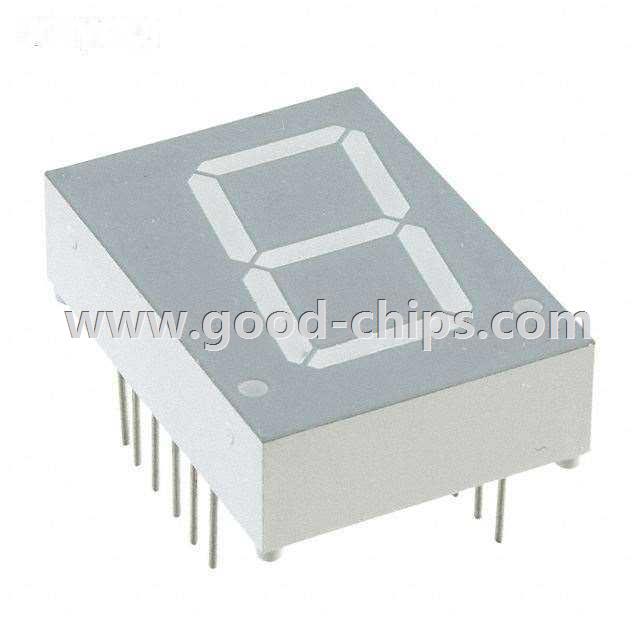

Manufacturer Part Number: | LTS-3403LE |
---|---|
Manufacturer: | Lite-On Inc. |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9789 Pieces |
Unit Price: | Quote by Email |
Description: | Character LED Display Module Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) 18-DIP (0.600", 15.24mm), 13 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTS-3403LE Datasheet |
Internal Part Number | 898-LTS-3403LE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 7-Segment Single Digit Display | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Lite-On Inc. | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Number of Characters | 1 | |
Size / Dimension | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) | |
Digit/Alpha Size | 0.80" (20.32mm) | |
Display Type | 7-Segment | |
Common Pin | Common Cathode | |
Color | Orange-Red | |
Voltage - Forward (Vf) (Typ) | 2V | |
Current - Test | 20mA | |
Millicandela Rating | 2.4mcd | |
Wavelength - Peak | 630nm | |
Power Dissipation (Max) | 75mW | |
Package / Case | 18-DIP (0.600", 15.24mm), 13 Leads | |
Standard Package | 18 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTS-3403LE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTS-3403LE is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTS-3403LE is new and unused, you can buy LTS-3403LE Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTS-3403LE.
