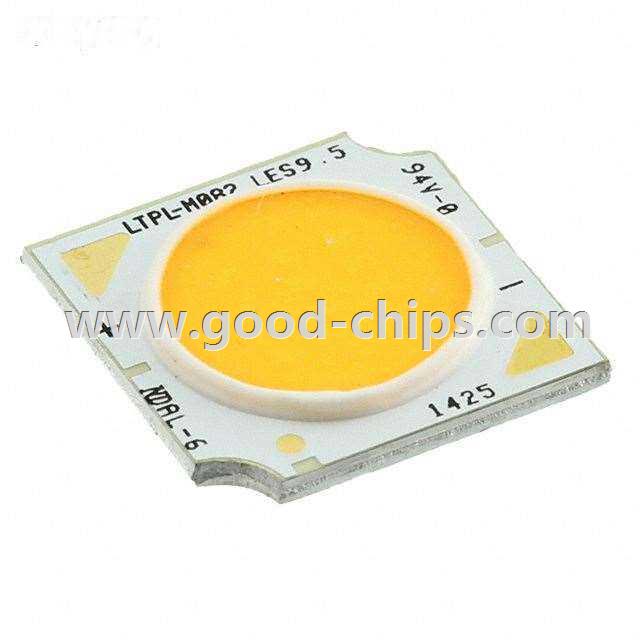

Manufacturer Part Number: | LTPL-M08206ZS27-T0 |
---|---|
Manufacturer: | Lite-On Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) LTPL-M08 White, Warm Square |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTPL-M08206ZS27-T0 Datasheet |
Internal Part Number | 898-LTPL-M08206ZS27-T0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
PCN Other | Multiple Changes 13/Nov/2014 Multiple Changes 13/Nov/2014 | |
Online Catalog | LTPL-M08 Series | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Lite-On Inc. | |
Series | LTPL-M08 | |
Packaging | Tube | |
Part Status | Active | |
Type | Chip On Board (COB) | |
Color | White, Warm | |
CCT (K) | 2700K 3-Step MacAdam Ellipse | |
Wavelength | - | |
Configuration | Square | |
Flux @ Current/Temperature - Test | 555 lm (Typ) | |
Current - Test | 120mA | |
Temperature - Test | 25°C | |
Voltage - Forward (Vf) (Typ) | 36.5V | |
Lumens/Watt @ Current - Test | 127 lm/W | |
Current - Max | 200mA | |
CRI (Color Rendering Index) | 80 | |
Viewing Angle | 120° | |
Features | - | |
Size / Dimension | 13.50mm L x 13.50mm W | |
Height | 1.80mm | |
Light Emitting Surface (LES) | 1.80mm | |
Lens Type | Flat | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTPL-M08206ZS27-T0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTPL-M08206ZS27-T0 is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTPL-M08206ZS27-T0 is new and unused, you can buy LTPL-M08206ZS27-T0 Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTPL-M08206ZS27-T0.
