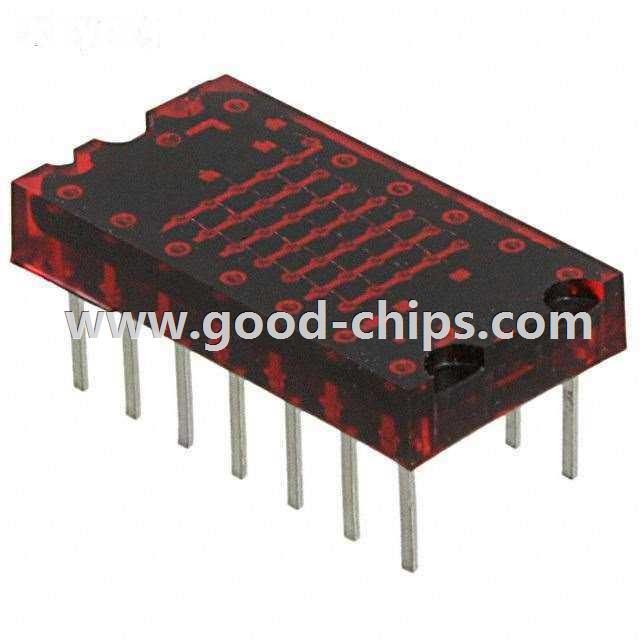

| Manufacturer Part Number: | LTP-305HR |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Display Modules - LED Dot Matrix and Cluster |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 2V 0.39" L x 0.73" W x 0.14" H (9.80mm x 18.50mm x 3.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTP-305HR Datasheet |
| Internal Part Number | 898-LTP-305HR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LTP-305 Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Dot Matrix and Cluster | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Part Status | Active | |
| Millicandela Rating | 1.6mcd | |
| Internal Connection | Common Cathode Row, Common Anode Column | |
| Size / Dimension | 0.39" L x 0.73" W x 0.14" H (9.80mm x 18.50mm x 3.50mm) | |
| Color | Red | |
| Configuration | 5 x 7 | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Interface | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTP-305HR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTP-305HR is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTP-305HR is new and unused, you can buy LTP-305HR Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTP-305HR.
