| Manufacturer Part Number: | LTM8061IV-4.1#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | PMIC - Battery Chargers |
| Available Quantity: | 9179 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BATTERY CHARGER 4.1V 77-LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM8061IV-4.1#PBF Datasheet |
| Internal Part Number | 898-LTM8061IV-4.1#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC1645A Design Files | |
| Featured Product | µModule Products | |
| Reference Design Library | DC1645A-A: 1 Cell, 4.1V, 2A Max, Li-Ion/LiPo | |
| PCN Design/Specification | LTM8061 Internal Package Construction 05/Dec/2013 | |
| Online Catalog | Battery Chargers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Chargers | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Packaging | Tray | |
| Part Status | Active | |
| Battery Chemistry | Lithium-Ion/Polymer | |
| Number of Cells | 1 | |
| Current - Charging | Constant - Programmable | |
| Programmable Features | Current, Timer | |
| Fault Protection | - | |
| Charge Current - Max | 2A | |
| Battery Pack Voltage | 4.1V | |
| Voltage - Supply (Max) | 32V | |
| Interface | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

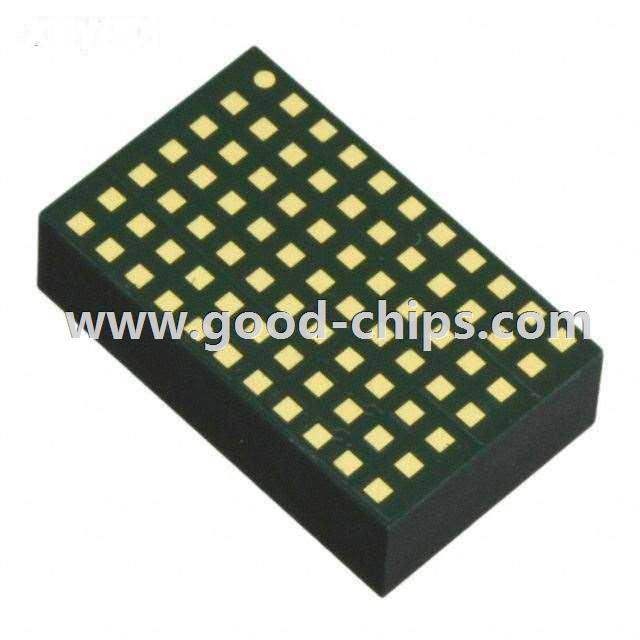

| Package / Case | 77-BLGA | |
| Supplier Device Package | 77-LGA (15x9) | |
| Standard Package | 170 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM8061IV-4.1#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM8061IV-4.1#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8061IV-4.1#PBF is new and unused, you can buy LTM8061IV-4.1#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8061IV-4.1#PBF.
