| Manufacturer Part Number: | LTM8042EV-1#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | LED Drivers |
| Available Quantity: | 9204 Pieces |
| Unit Price: | Quote by Email |
| Description: | 350mA 2 ~ 32 V Constant Current LED Driver Boost, Buck, Buck-Boost Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM8042EV-1#PBF Datasheet |
| Internal Part Number | 898-LTM8042EV-1#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC1511A Design Files LTM8042-1 Spice Model Lighting Product Selector | |
| Featured Product | µModule Products | |
| Reference Design Library | DC1511A-A: 32Vf(max)@1A,3~30V in, Inductor On-Chip DC1511A-B: 32Vf(max) @ 350mA, 3 ~ 30V in | |
| PCN Design/Specification | Solder Die Material 13/Jan/2014 | |
| Online Catalog | LTM8042 Series | |
| Category | Power Supplies - Board Mount | |
| Family | LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | Boost, Buck, Buck-Boost | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 30V | |
| Voltage - Output | 2 ~ 32 V | |
| Current - Output (Max) | 350mA | |
| Power (Watts) | 11W | |
| Dimming | Analog, PWM | |
| Features | Remote On/Off, OTP, SCP | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | - | |
| Mounting Type | Surface Mount | |

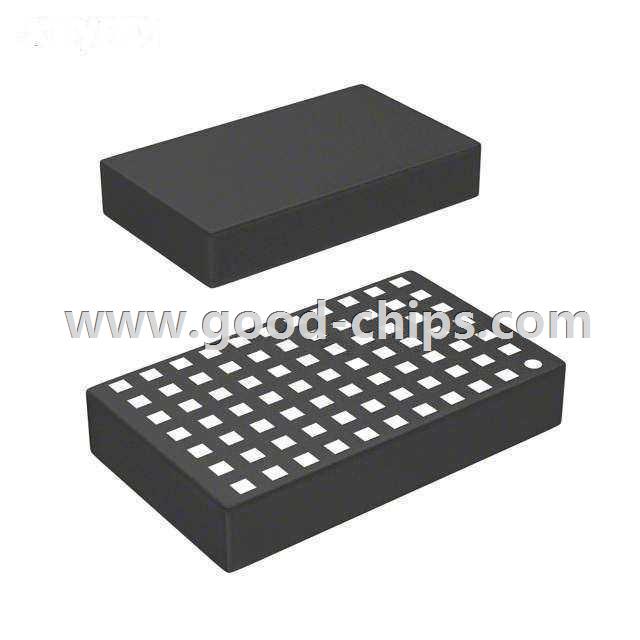

| Package / Case | 77-BLGA | |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | |
| Packaging | Tray | |
| Approvals | - | |
| Weight | 0.001 KG | |
| Standard Package | 170 | |
| Application | Email for details | |
| Replacement Part | LTM8042EV-1#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM8042EV-1#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8042EV-1#PBF is new and unused, you can buy LTM8042EV-1#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8042EV-1#PBF.
