| Manufacturer Part Number: | LTM8033MPV#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | DC DC Converters |
| Available Quantity: | 9351 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DC-DC UMODULE BUCK 3A 76-LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM8033MPV#PBF Datasheet |
| Internal Part Number | 898-LTM8033MPV#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Module vs. Discrete DC to DC µModule® Family of EN55022 Class B Certified Regulators | |
| Design Resources | LTM8033 Spice Model DC1623A Design Files LTM8033MPV#PBF Footprint.bxl | |
| Featured Product | µModule Products | |
| Reference Design Library | DC1623A: 3.3V @ 3A, 5.5 ~ 36V in | |
| PCN Assembly/Origin | LTM8033 Assembly Process 26/Jun/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 0.8 ~ 24 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 3A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | - | |
| Mounting Type | Surface Mount | |

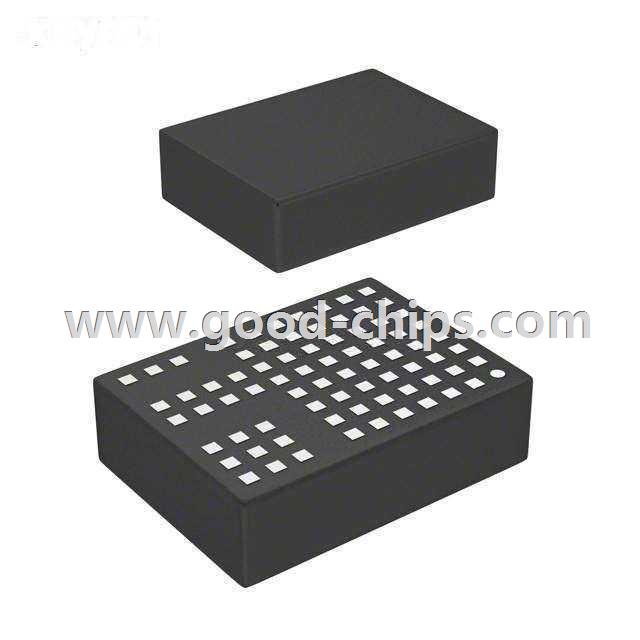

| Package / Case | 76-LGA | |
| Size / Dimension | 0.59" L x 0.44" W x 0.17" H (15.0mm x 11.3mm x 4.3mm) | |
| Operating Temperature | -55°C ~ 125°C | |
| Efficiency | - | |
| Power (Watts) - Max | - | |
| Standard Package | 119 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM8033MPV#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM8033MPV#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8033MPV#PBF is new and unused, you can buy LTM8033MPV#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8033MPV#PBF.
