| Manufacturer Part Number: | LTM8032MPV#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | DC DC Converters |
| Available Quantity: | 9260 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BUCK ADJ 2A 71LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM8032MPV#PBF Datasheet |
| Internal Part Number | 898-LTM8032MPV#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Wide Temperature DC/DC Converter µModules High Voltage µModule DC/DC Regulators Power Module vs. Discrete DC to DC µModule® Family of EN55022 Class B Certified Regulators | |
| Design Resources | LTM8032 Spice Model DC1386B Design Files LTM8032MPV#PBF Footprint.bxl | |
| Featured Product | µModule Products | |
| Reference Design Library | DC1386B : 3.3V@2A, 5.5~36V in, Inductor On-Chip | |
| PCN Design/Specification | LTM8029, LTM8032 25/Apr/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | µModule® Series LTM8032 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 0.8 ~ 10 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 2A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | - | |
| Mounting Type | Surface Mount | |

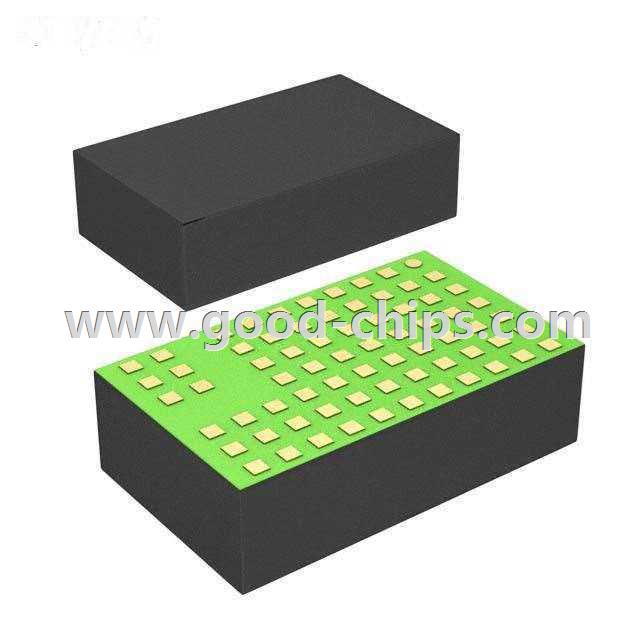

| Package / Case | 71-LGA | |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | |
| Operating Temperature | -55°C ~ 125°C | |
| Efficiency | - | |
| Power (Watts) - Max | - | |
| Standard Package | 170 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM8032MPV#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM8032MPV#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8032MPV#PBF is new and unused, you can buy LTM8032MPV#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8032MPV#PBF.
