Manufacturer Part Number: | LTM8026EV#PBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | DC DC Converters |
Available Quantity: | 10180 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 1.2-24V 120W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTM8026EV#PBF Datasheet |
Internal Part Number | 898-LTM8026EV#PBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LTM802x High Voltage µModule Switching Regulators LTM8026 and LTM8052 Step-Down uModule Regulators | |
Featured Product | µModule Products | |
Reference Design Library | DC1696A: 3.3V @ 5A, 6 ~ 36V in | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Packaging | Tray | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 6V | |
Voltage - Input (Max) | 36V | |
Voltage - Output 1 | 1.2 ~ 24 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 5A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | OTP, OVP, SCP | |
Mounting Type | Surface Mount | |

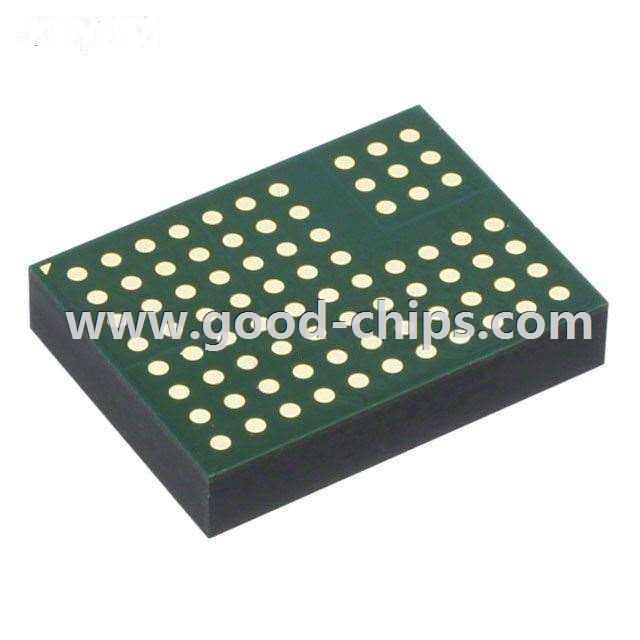

Package / Case | 81-LGA | |
Size / Dimension | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | |
Operating Temperature | -40°C ~ 125°C | |
Efficiency | - | |
Power (Watts) - Max | - | |
Standard Package | 119 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTM8026EV#PBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTM8026EV#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8026EV#PBF is new and unused, you can buy LTM8026EV#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8026EV#PBF.
