| Manufacturer Part Number: | LTM4632EY#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | DC DC Converters |
| Available Quantity: | 9270 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CNVRTR 2X0.6-2.5V 25LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM4632EY#PBF Datasheet |
| Internal Part Number | 898-LTM4632EY#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | Design Note 551 | |
| Online Catalog | µModule® Series LTM4632 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 15V | |
| Voltage - Output 1 | 0.6 ~ 2.5 V | |
| Voltage - Output 2 | 0.6 ~ 2.5 V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 3A, 3A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OTP, OVP | |
| Mounting Type | Surface Mount | |

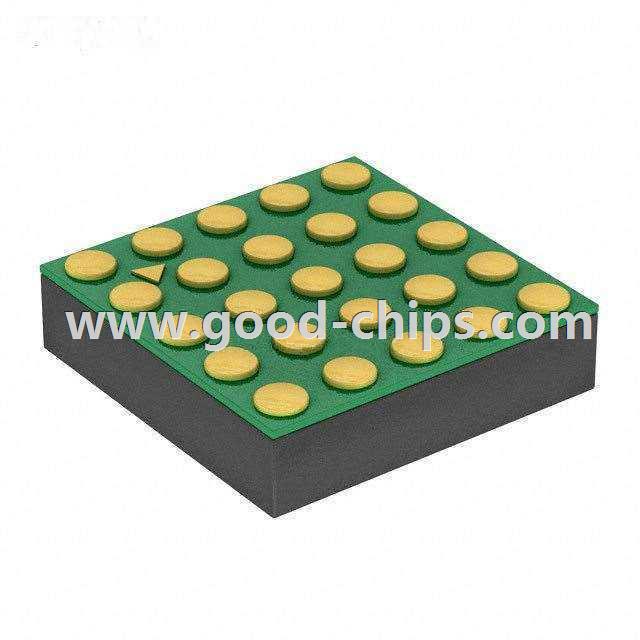

| Package / Case | 25-LGA | |
| Size / Dimension | 0.25" L x 0.25" W x 0.07" H (6.3mm x 6.3mm x 1.8mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | - | |
| Power (Watts) - Max | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM4632EY#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM4632EY#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM4632EY#PBF is new and unused, you can buy LTM4632EY#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM4632EY#PBF.
