| Manufacturer Part Number: | LTM4600HVIV#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | DC DC Converters |
| Available Quantity: | 9072 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DC/DC UMODULE 10A 104-LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM4600HVIV#PBF Datasheet |
| Internal Part Number | 898-LTM4600HVIV#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Module vs. Discrete DC to DC | |
| Design Resources | LTM4600HV Spice Model DC823B-B Design Files LTM4600HVIV#PBF Footprint.bxl | |
| Featured Product | µModule Products | |
| Reference Design Library | DC823B-B: 0.6 ~ 5V @ 10A, 4.5 ~ 28V in | |
| PCN Assembly/Origin | LTM4600,4602 Assembly Addition 29/May/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | µModule® Series LTM4600 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 28V | |
| Voltage - Output 1 | 0.6 ~ 5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 10A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | - | |
| Mounting Type | Surface Mount | |

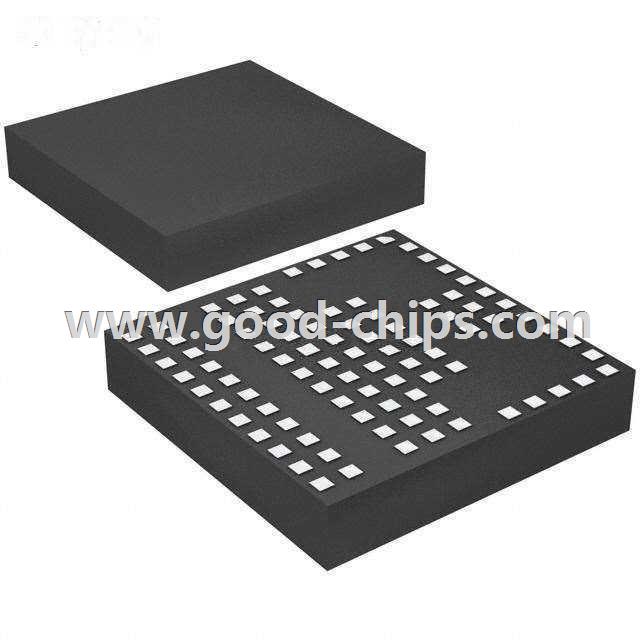

| Package / Case | 104-LGA | |
| Size / Dimension | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 92% | |
| Power (Watts) - Max | - | |
| Standard Package | 119 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM4600HVIV#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM4600HVIV#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM4600HVIV#PBF is new and unused, you can buy LTM4600HVIV#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM4600HVIV#PBF.
