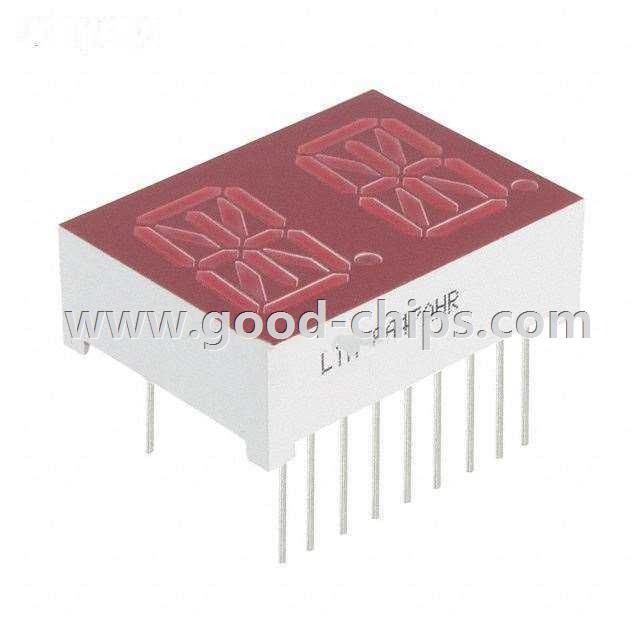

| Manufacturer Part Number: | LTM-8647AHR |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9462 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 14-Segment, Alphanumeric 2 Character Serial Input 0.4mA 0.733" H x 0.992" W x 0.326" D (18.62mm x 25.20mm x 8.27mm) 18-DIP (0.600", 15.24mm), 12 Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTM-8647AHR Datasheet |
| Internal Part Number | 898-LTM-8647AHR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LED Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.733" H x 0.992" W x 0.326" D (18.62mm x 25.20mm x 8.27mm) | |
| Digit/Alpha Size | 0.54" (13.72mm) | |
| Display Type | 14-Segment, Alphanumeric | |
| Common Pin | Serial Input | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - Test | 0.4mA | |
| Millicandela Rating | 2.3mcd | |
| Wavelength - Peak | 635nm | |
| Power Dissipation (Max) | 335mW | |
| Package / Case | 18-DIP (0.600", 15.24mm), 12 Leads | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTM-8647AHR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTM-8647AHR is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTM-8647AHR is new and unused, you can buy LTM-8647AHR Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM-8647AHR.
