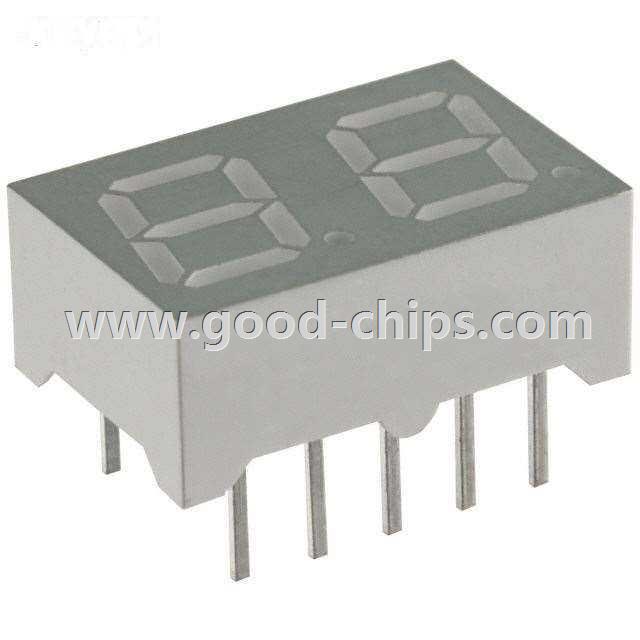

| Manufacturer Part Number: | LTD-2601B |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Blue 7-Segment 2 Character Common Anode 3.8V 20mA 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) 10-DIP (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTD-2601B Datasheet |
| Internal Part Number | 898-LTD-2601B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) | |
| Digit/Alpha Size | 0.28" (7.00mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Blue | |
| Voltage - Forward (Vf) (Typ) | 3.8V | |
| Current - Test | 20mA | |
| Millicandela Rating | 3mcd | |
| Wavelength - Peak | 428nm | |
| Power Dissipation (Max) | 65mW | |
| Package / Case | 10-DIP (0.300", 7.62mm) | |
| Standard Package | 33 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTD-2601B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTD-2601B is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTD-2601B is new and unused, you can buy LTD-2601B Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTD-2601B.
