Manufacturer Part Number: | LTC3609EWKG#TRPBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 52-VFQFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTC3609EWKG#TRPBF Datasheet |
Internal Part Number | 898-LTC3609EWKG#TRPBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Linear Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4V | |
Voltage - Input (Max) | 32V | |
Voltage - Output (Min/Fixed) | 0.6V | |
Voltage - Output (Max) | 32V | |
Current - Output | 6A | |
Frequency - Switching | - | |
Synchronous Rectifier | No | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

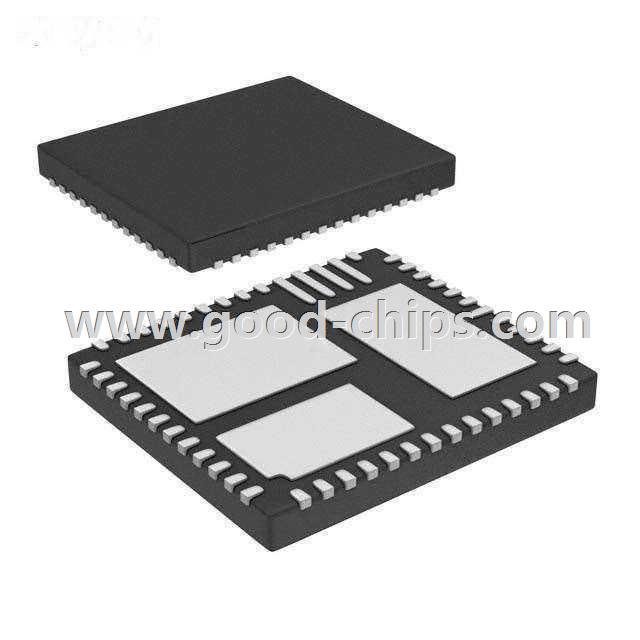

Package / Case | 52-VFQFN Exposed Pad | |
Supplier Device Package | 52-QFN-Multipad (7x8) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTC3609EWKG#TRPBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTC3609EWKG#TRPBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC3609EWKG#TRPBF is new and unused, you can buy LTC3609EWKG#TRPBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC3609EWKG#TRPBF.
