Manufacturer Part Number: | LTC3210EPD-1#PBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | PMIC - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Driver IC 5 Output DC DC Regulator Switched Capacitor (Charge Pump) 25mA, 400mA 16-UTQFN (3x3) Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTC3210EPD-1#PBF Datasheet |
Internal Part Number | 898-LTC3210EPD-1#PBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - LED Drivers | |
Manufacturer | Linear Technology | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | DC DC Regulator | |
Topology | Switched Capacitor (Charge Pump) | |
Internal Switch(s) | Yes | |
Number of Outputs | 5 | |
Voltage - Supply (Min) | 2.9V | |
Voltage - Supply (Max) | 4.5V | |
Voltage - Output | - | |
Current - Output / Channel | 25mA, 400mA | |
Frequency | 800kHz | |
Dimming | - | |
Applications | Backlight | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

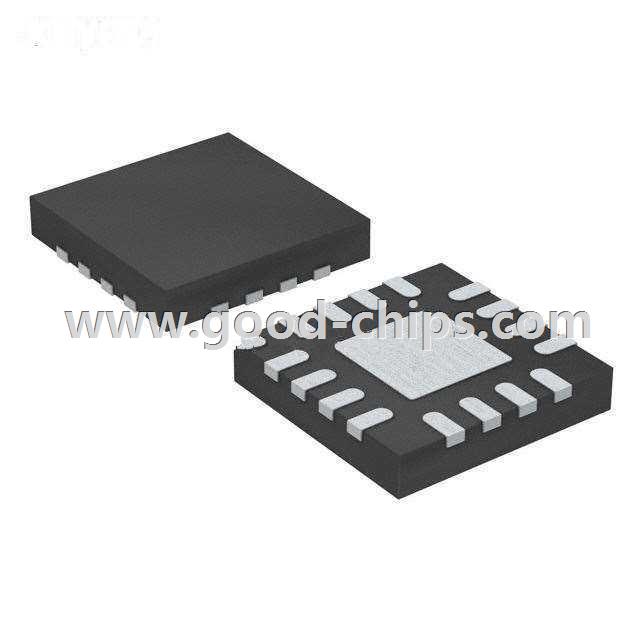

Package / Case | 16-UFQFN Exposed Pad | |
Supplier Device Package | 16-UTQFN (3x3) Exposed Pad | |
Standard Package | 121 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTC3210EPD-1#PBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTC3210EPD-1#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC3210EPD-1#PBF is new and unused, you can buy LTC3210EPD-1#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC3210EPD-1#PBF.
