| Manufacturer Part Number: | LTC1296BIN#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Data Acquisition - ADCs/DACs - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Data Acquisition System (DAS), ADC 12 bit 46.5k Serial, Parallel 20-PDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTC1296BIN#PBF Datasheet |
| Internal Part Number | 898-LTC1296BIN#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | General Purpose SAR ADCs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - ADCs/DACs - Special Purpose | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Data Acquisition System (DAS), ADC | |
| Resolution (Bits) | 12 b | |
| Sampling Rate (Per Second) | 46.5k | |
| Data Interface | Serial, Parallel | |
| Voltage Supply Source | Dual ± | |
| Voltage - Supply | ±5V, 5V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |

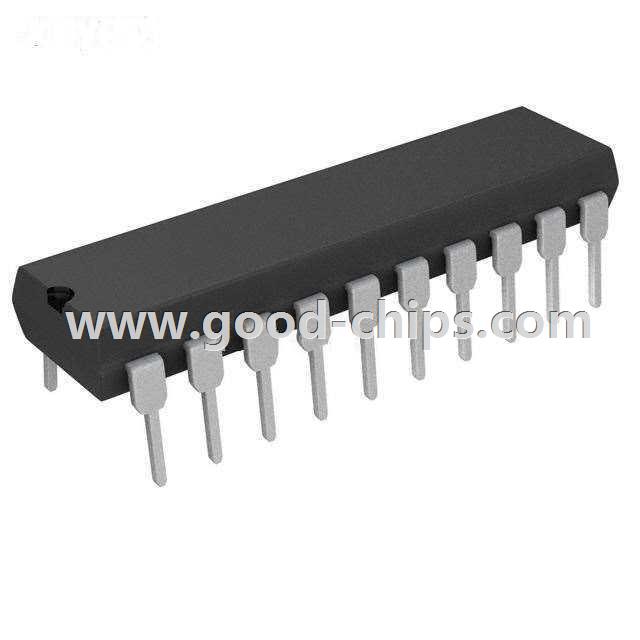

| Package / Case | 20-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 20-PDIP | |
| Standard Package | 18 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTC1296BIN#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTC1296BIN#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC1296BIN#PBF is new and unused, you can buy LTC1296BIN#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC1296BIN#PBF.
