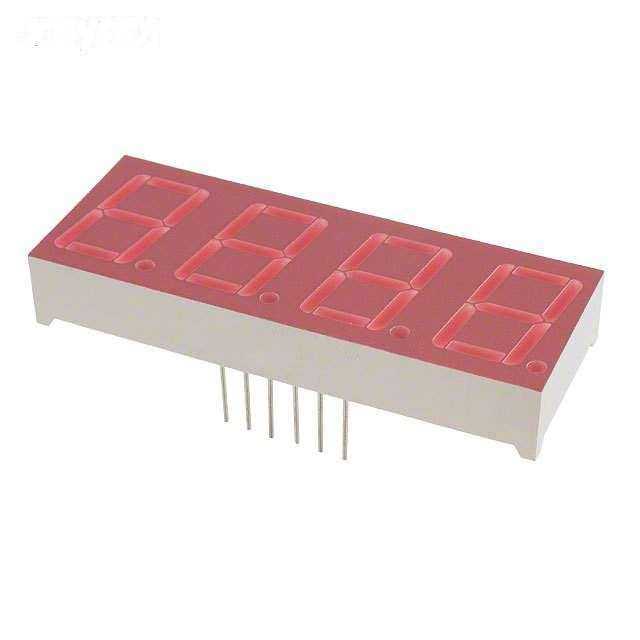

LTC-5723HR

LTC-5723HR
Manufacturer Part Number:LTC-5723HR
Manufacturer:
Product Category:Display Modules - LED Character and Numeric
Available Quantity:10614 Pieces
Unit Price:Quote by Email
Description:Character LED Display Module Red 7-Segment 4 Character Common Cathode 2V 20mA 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) 12-DIP (0.600", 15.24mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: LTC-5723HR Datasheet
LTC-5723HR´s Parameters
Internal Part Number898-LTC-5723HR
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog 7-Segment Quad Digit Display
CategoryOptoelectronics
FamilyDisplay Modules - LED Character and Numeric
ManufacturerLite-On Inc.
Series-
PackagingTube
Part StatusActive
Number of Characters4
Size / Dimension0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm)
Digit/Alpha Size0.56" (14.22mm)
Display Type7-Segment
Common PinCommon Cathode
ColorRed
Voltage - Forward (Vf) (Typ)2V
Current - Test20mA
Millicandela Rating2.4mcd
Wavelength - Peak635nm
Power Dissipation (Max)75mW
Package / Case12-DIP (0.600", 15.24mm)
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartLTC-5723HR
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

LTC-5723HR is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTC-5723HR is new and unused, you can buy LTC-5723HR Lite-On Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for LTC-5723HR.
