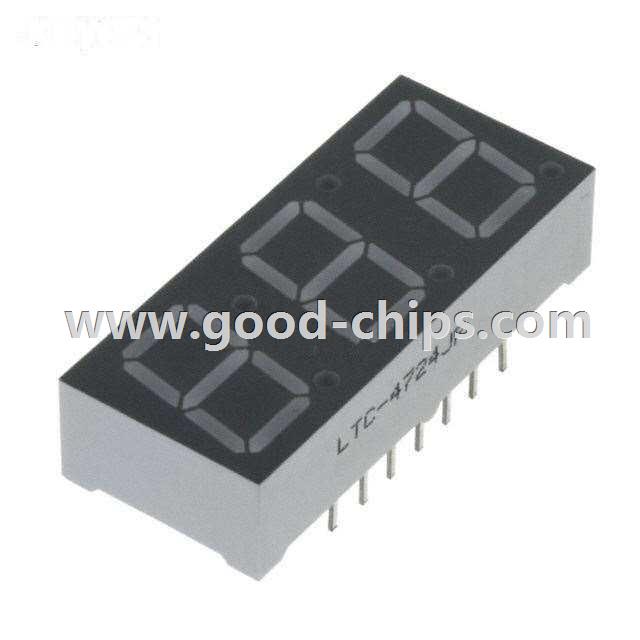

Manufacturer Part Number: | LTC-4724JF |
---|---|
Manufacturer: | Lite-On Inc. |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9364 Pieces |
Unit Price: | Quote by Email |
Description: | Character LED Display Module Orange-Yellow 7-Segment 3 Character Common Cathode 2.05V 20mA 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) 15-DIP (0.400", 10.16mm), 12 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTC-4724JF Datasheet |
Internal Part Number | 898-LTC-4724JF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 7-Segment Triple Digit Display | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Lite-On Inc. | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Number of Characters | 3 | |
Size / Dimension | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | |
Digit/Alpha Size | 0.39" (10.00mm) | |
Display Type | 7-Segment | |
Common Pin | Common Cathode | |
Color | Orange-Yellow | |
Voltage - Forward (Vf) (Typ) | 2.05V | |
Current - Test | 20mA | |
Millicandela Rating | 0.65mcd | |
Wavelength - Peak | 611nm | |
Power Dissipation (Max) | 70mW | |
Package / Case | 15-DIP (0.400", 10.16mm), 12 Leads | |
Standard Package | 17 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTC-4724JF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTC-4724JF is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTC-4724JF is new and unused, you can buy LTC-4724JF Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC-4724JF.
