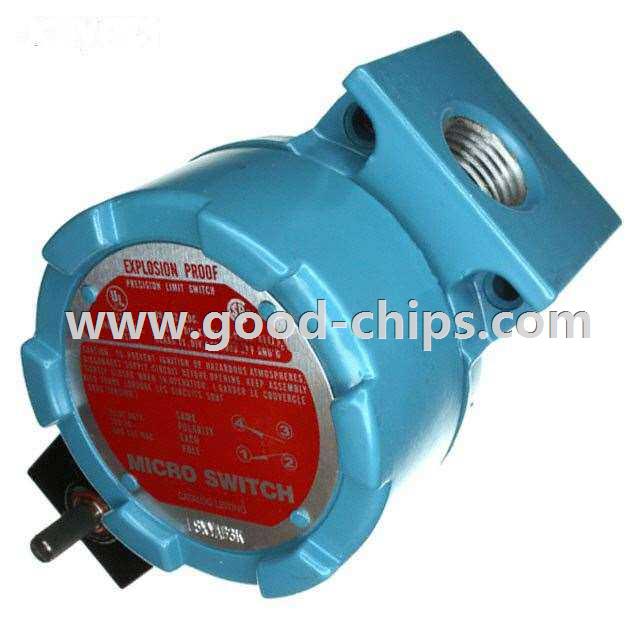

| Manufacturer Part Number: | LSXYAB3K |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 10A 120V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LSXYAB3K Datasheet |
| Internal Part Number | 898-LSXYAB3K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Online Catalog | MICRO SWITCH™ LSX Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | LSX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT-DB | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC), 800mA (DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 115V | |
| Actuator Type | Side Rotary - No Lever | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw Terminal | |
| Ingress Protection | - | |
| Features | Explosion Proof | |
| Operating Force, Torque | 4 in-lb | |
| Release Force | - | |
| Pretravel | 15° | |
| Differential Travel | 5° | |
| Overtravel | 60° | |
| Operating Position | - | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Operating Temperature | -40°C ~ 121°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LSXYAB3K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LSXYAB3K is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of LSXYAB3K is new and unused, you can buy LSXYAB3K Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LSXYAB3K.
