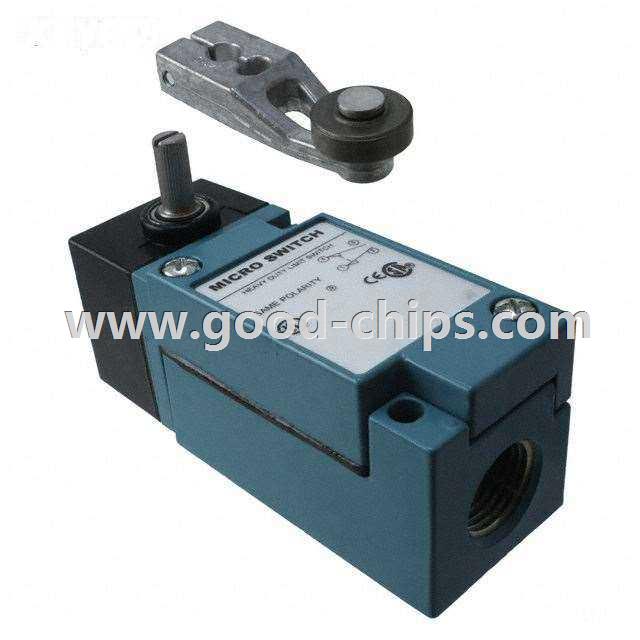

Manufacturer Part Number: | LSA1A-1D |
---|---|
Manufacturer: | Honeywell Sensing and Productivity Solutions |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9048 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACTION SPDT 10A 120V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LSA1A-1D Datasheet |
Internal Part Number | 898-LSA1A-1D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MICRO SWITCH™ LSA Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | Honeywell Sensing and Productivity Solutions | |
Series | HDLS | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT-DB | |
Switch Function | On-Mom | |
Current Rating | 10A (AC), 800mA (DC) | |
Voltage Rating - AC | 120V | |
Voltage Rating - DC | 115V | |
Actuator Type | Side Rotary, Roller | |
Mounting Type | Chassis Mount | |
Termination Style | Plug In | |
Ingress Protection | - | |
Features | Steel Roller, Back Mounted | |
Operating Force, Torque | 4 in-lb | |
Release Force | - | |
Pretravel | 15° | |
Differential Travel | 5° | |
Overtravel | 60° | |
Operating Position | - | |
Mechanical Life | - | |
Electrical Life | - | |
Operating Temperature | -12°C ~ 121°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LSA1A-1D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LSA1A-1D is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of LSA1A-1D is new and unused, you can buy LSA1A-1D Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LSA1A-1D.
