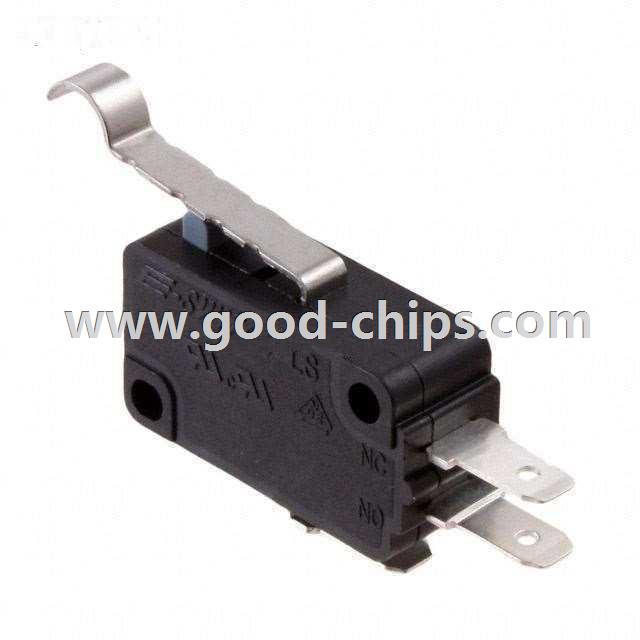

| Manufacturer Part Number: | LS0851504F085C1A |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9433 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 15A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LS0851504F085C1A Datasheet |
| Internal Part Number | 898-LS0851504F085C1A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Basics Power Switch Overview | |
| RoHS Information | LS Series RoHS Cert of Compliance | |
| 3D Model | LS0851504FyyyC1A.stp | |
| Online Catalog | LS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | E-Switch | |
| Series | LS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 15A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Simulated Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.187" (4.7mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 85gf | |
| Release Force | 30gf | |
| Pretravel | 0.205" (5.2mm) | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | 0.748" (19.0mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LS0851504F085C1A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LS0851504F085C1A is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of LS0851504F085C1A is new and unused, you can buy LS0851504F085C1A E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LS0851504F085C1A.
