Manufacturer Part Number: | LR2F22R |
---|---|
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Product Category: | Through Hole Resistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES 22.0 OHM 3/4W 1% AXIAL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LR2F22R Datasheet |
Internal Part Number | 898-LR2F22R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 1622715-1 Statement of Compliance RoHS 2 Statement | |
Category | Resistors | |
Family | Through Hole Resistors | |
Manufacturer | TE Connectivity AMP Connectors | |
Series | LR, Neohm | |
Packaging | Tape & Box (TB) | |
Part Status | Active | |
Resistance (Ohms) | 22 | |
Tolerance | ±1% | |
Power (Watts) | 0.75W, 3/4W | |
Composition | Metal Film | |
Features | - | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | Axial | |
Supplier Device Package | Axial | |
Size / Dimension | 0.138" Dia x 0.382" L (3.50mm x 9.70mm) | |
Height | - | |
Number of Terminations | 2 | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LR2F22R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

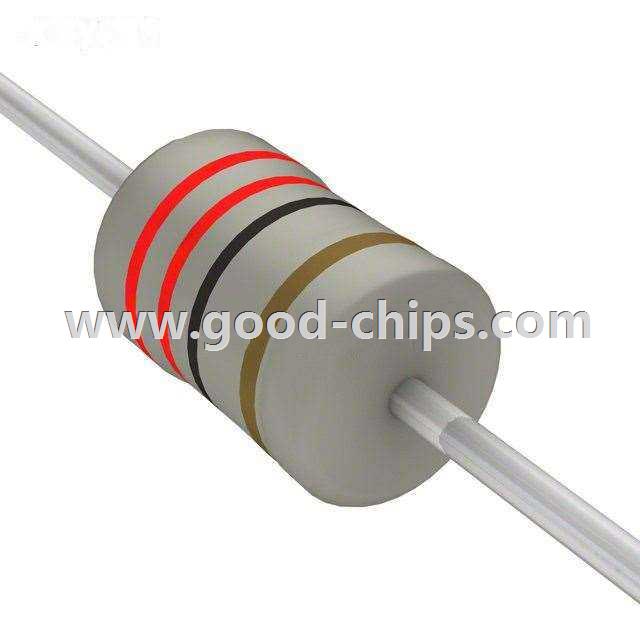

Picture / Image / Photo | Send via email |
LR2F22R is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of LR2F22R is new and unused, you can buy LR2F22R TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LR2F22R.
