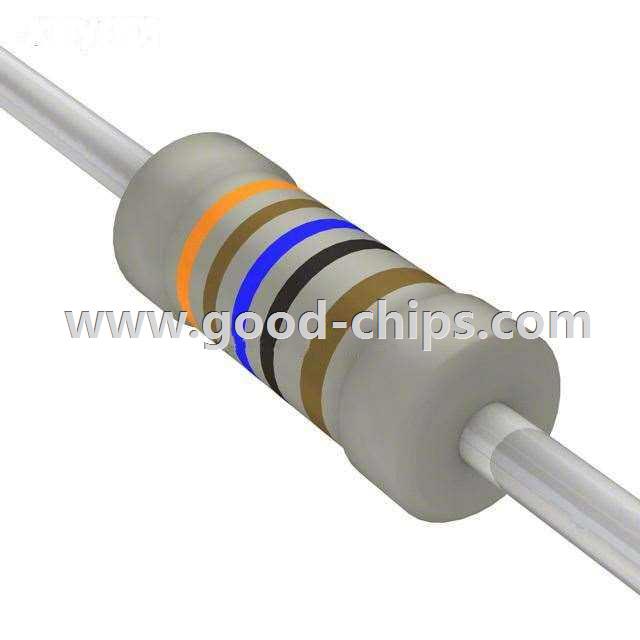

| Manufacturer Part Number: | LR1F316R |
|---|---|
| Manufacturer: | TE Connectivity Potter & Brumfield Relays |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 316 OHM 0.6W 1% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LR1F316R Datasheet |
| Internal Part Number | 898-LR1F316R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 1622436-6 Statement of Compliance RoHS 2 Statement | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | TE Connectivity AMP Connectors | |
| Series | LR, Neohm | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Resistance (Ohms) | 316 | |
| Tolerance | ±1% | |
| Power (Watts) | 0.6W | |
| Composition | Metal Film | |
| Features | - | |
| Temperature Coefficient | ±50ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.091" Dia x 0.244" L (2.30mm x 6.20mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LR1F316R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LR1F316R is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of LR1F316R is new and unused, you can buy LR1F316R TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LR1F316R.
