| Manufacturer Part Number: | LQW2UAS3R3J00L |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3µH Unshielded Wirewound Inductor 290mA 3.4 Ohm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQW2UAS3R3J00L Datasheet |
| Internal Part Number | 898-LQW2UAS3R3J00L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Chip RF Inductors | |

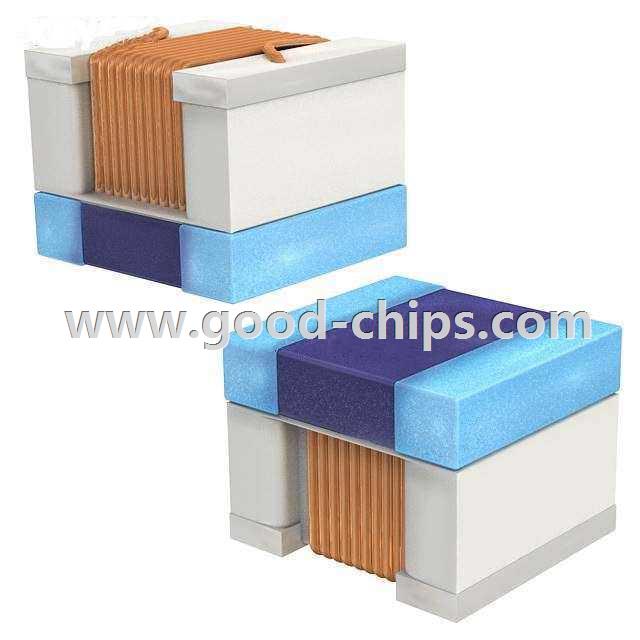

| Online Catalog | LQW2UA Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQW2UA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Air | |
| Inductance | 3.3µH | |
| Tolerance | ±5% | |
| Current Rating | 290mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 3.4 Ohm Max | |
| Q @ Freq | 22 @ 25MHz | |
| Frequency - Self Resonant | 90MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 7.9MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | |
| Height - Seated (Max) | 0.080" (2.03mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQW2UAS3R3J00L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQW2UAS3R3J00L is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQW2UAS3R3J00L is new and unused, you can buy LQW2UAS3R3J00L Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQW2UAS3R3J00L.
